内容包装
| 包含电缆 |
Audio (3.5mm), KVM |
| 用户手册 |
Y |
| 快速安装向导 |
Y |
性能
| 扫描间隔 |
25, 35, 45, 55, 50, 40, 10, 15, 20, 30, 60 s |
端口 & 界面
| 音响的连接 |
Y |
| 视频接口类型 |
VGA |
| 计算机数量 |
4 |
| 控制台端口 |
3.5mm headphone, 3.5mm mic, USB A, VGA (D-Sub) |
| 控制台 USB 端口数量 |
2 |
| 键盘接口类型 |
USB |
| 鼠标接口类型 |
USB |
| 麦克风输入数量 |
8 |
| USB2.0端口的数量 |
4 |
| USB 连接器形状 |
USB Type-A |
环境条件
| 运行湿度范围(H-H) |
0 - 80% |
| 储存温度范围 (T-T) |
-20 - 60 °C |
重量和尺寸
| 深度 |
164 mm |
| 重量 |
116 g |
| 宽度 |
72 mm |
| 高度 |
26 mm |
系统要求
| 可支持的Mac操作系统 |
Y |
| 可支持的Windows操作系统 |
Y |
另外
| 产品色彩 |
Black, Green |
| 运行温度范围（T - T） |
0 - 50 °C |
4-Port KVM Switch, USB, Audio, VGA, 2048 x 1536px, 4 LEDs, 116g
Product Overview

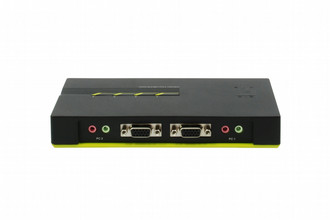

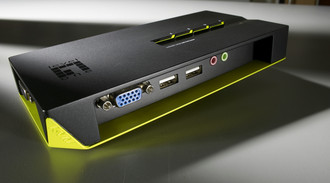

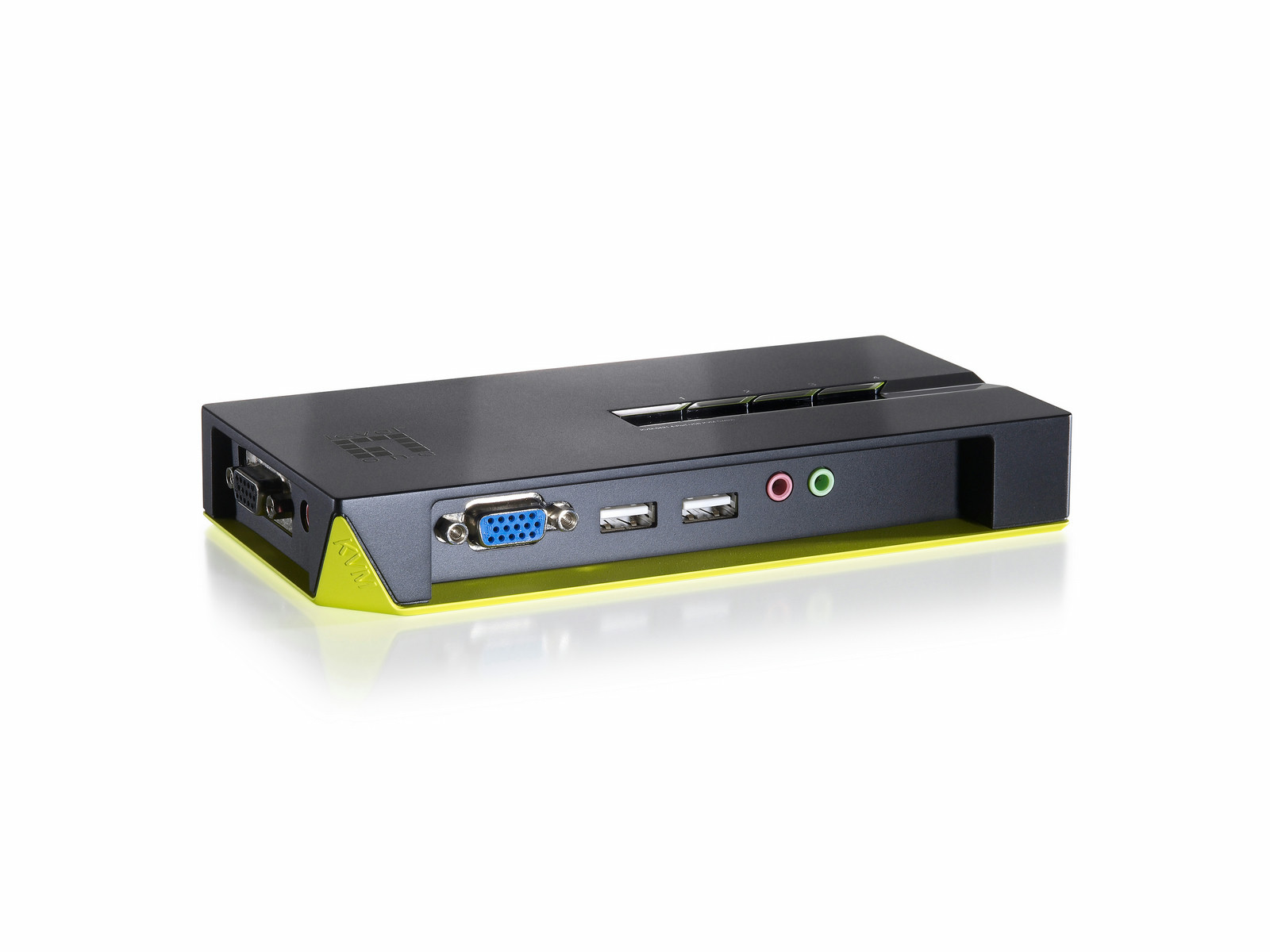

The KVM-0421 4-Port USB KVM Switch with Audio from LevelOne offers users with an easy to install KVM switch that can manage four computers from a single monitor, keyboard and mouse. With audio support, users can connect a single set of speakers directly to the KVM switch and enjoy listening to music and watching movies from whichever computer without switching cables.
It allows users to access, control, boot and reboot four USB-enabled multimedia computers using a single USB keyboard, mouse and monitor and a speaker set and microphone.
Flexible Multimedia Feature
Users are now offered with flexible multimedia support. The KVM-0421 offers users with user-programmable simultaneous or independent PC and audio switching. This enables users to listen to music from one computer while simultaneously using the other computers for work or fun.
The KVM-0421 supports PC and Macintosh (MAC G3, G4, iMAC) platforms.
One Keyboard, Mouse and Monitor controlling Two Computers

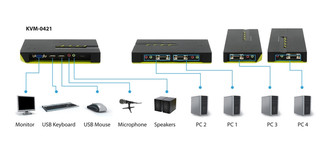

The LevelOne KVM-0421 connects four computer systems to a single USB keyboard, USB mouse and monitor. The 4-Port USB KVM Switch also provides audio support allowing users to connect the audio ports of each computer to the KVM switch.
The KVM-0421 is a Plug-and-Play KVM switch that requires no power supply and no additional software installation. Users simply connect the KVM switch to the USB mouse and keyboard and screen ports on each computer as well as the audio ports by using the included cables.
Easy to Switch between Computers
The KVM-0421 switches between computers either through the pushbuttons located on the switch or by using keyboard hot keys. The KVM switch includes a Windows® and Mac based utility allowing users to select and monitor active PCs from their desktop as well as to configure the keyboard hotkeys for easy switching between computers.
The KVM-0421 further supports hot-plugging for easy maintenance of computers without shutting down the KVM switch or the computer. The LED display offers an “at-a-glance” status display for easy computer activity assessment.
- Flexible switching for an uninterrupted multi-media experience across multi-platforms
- Control and manage four computers using a single USB keyboard and mouse and monitor
- Simultaneous and independent PC and Audio user-programmable switching
- High 2048 x 1536 pixels VGA resolution
- USB interface power supply
- Easy switching between computers with keyboard hotkeys push button and software selection
- At-a-glance LED display for easy monitoring of PC activity
- True Plug-and-Play operation without any software installation or power supply
- Windows-based switching software utility included
