数据传输
| MAC 地址表 |
2048 entries |
| 存储转发 |
Y |
性能
| 缓冲区大小 |
1024 KB |
| 最大电缆长度 |
100 m |
| Auto-negotiation 自动协商功能 |
Y |
| 可堆叠 |
N |
联网
| 自动 MDI / MDI - X 检测功能 |
Y |
| 可支持的电缆类型 |
Cat5 |
| 10G支持 |
N |
| 全双工传输 |
Y |
端口 & 界面
| 基本交换 RJ-45 以太网端口数量 |
5 |
| DC-IN插口 |
Y |
| 基本交换 RJ-45 以太网端口类型 |
Fast Ethernet (10/100) |
| 以太网铜缆技术 |
100BASE-TX, 10BASE-T |
以太网电源（PoE）
| 通过以太网（PoE）供电端口数量 |
1 |
| 支持以太网（PoE） |
Y |
5 x 10/100Mbps RJ-45, 2K MAC, 200Mbps, IEEE 802.3/u/x/af
Product Overview

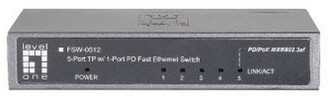

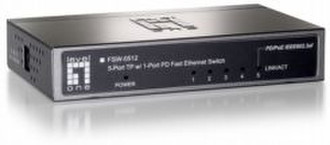

The LevelOne FSW-0512 is a compact 5-port Fast Ethernet Switch with a PD port that allows this switch to receive its power requirement from a PoE (PSE)Switch or PoE Injector. It is a high-performance, cost-effective and easy to use network switch for expanding home and office networks.
Power from PoE Switch or Injector
The PoE(PD) switch receives its power from a network PoE PSE (Power Sourcing Equipment) , allowing for a flexible and easy to install network switch for expanding the current LAN.
Plug-and-Play Expansion of Home/Office Network
The LevelOne 5-port Fast Ethernet Switch is an easy to install “plug-and-play” switch, allowing users to either create a Local Area Network (LAN) or connect additional network devices, such network cameras, storage devices or print servers, to an established network.
Fast Ethernet Switching Architecture
The FSW-0512 delivers 200Mbps bandwidth per port in full-duplex mode and incorporates a non-blocking wire-speed switching architecture for seamless transferring of data through the network.
All ports support auto-negotiation and auto-MDI/MDIX sensing, eliminating the need for crossover cables or Uplink ports. Each port can be used as general network ports or as connecting ports into a router, server, hub or another network switch.
- IEEE 802.3af PoE PD that can be powered by PoE PSE or external power supply
- 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX
- Supports 2K MAC address auto-learning and auto-aging
- Provides wall or desktop mounting
- Quick and easy installation
