数据传输
| MAC 地址表 |
1024 entries |
| 存储转发 |
Y |
| 交换容量 |
1 Gbit/s |
| 封包转发率（10 Mbps） |
14880 pps |
| 封包转发率（100 Mbps） |
148000 pps |
性能
| 缓冲区大小 |
128 KB |
| Auto-negotiation 自动协商功能 |
Y |
| 可堆叠 |
N |
联网
| 自动 MDI / MDI - X 检测功能 |
Y |
| 流量控制支持 |
Y |
| 10G支持 |
N |
| 全双工传输 |
Y |
端口 & 界面
| 基本交换 RJ-45 以太网端口数量 |
5 |
| DC-IN插口 |
Y |
| 以太网铜缆技术 |
100BASE-TX, 10BASE-T |
| 基本交换 RJ-45 以太网端口类型 |
Fast Ethernet (10/100) |
5 x 10/100Base-TX RJ-45, 1K MAC, 1Gbps, 1.93W, IEEE 802.3/u/x

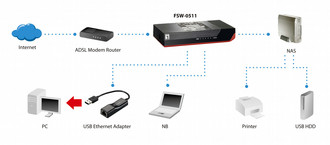

The LevelOne FSW-0511 is a 10/100Mbps NWay Unmanaged Switch with outstanding performance and high efficiency. With 5 NWay auto-negotiation ports, this switch fulfills the needs of connecting users on a network with automatic selection of best network speed and duplex mode.
Power Saving Features
The FSW-0511 supports Green Ethernet to provide power-saving benefits without compromising performance. On of the ways it does this is by automatically detecting the length of connected cables and can adjust power usage by saving energy on shorter cable connections.

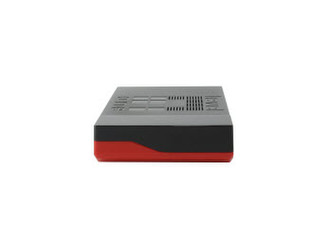

Compact and Stylish Design
The stylish, compact wall-mountable housing of FSW-0511 fits any working environment. It comes
with 5 10/100Mbps ports to meet SOHO and home network expansion needs.
Easy to Use
The FSW-0511 is plug-and-play and supports all kinds of network protocol compatibility to make installation and network management easy and fast. LED indicators provide quick, easy to read port and switch information.
- Provides flexibility of 5x 10/100BASE-TX ports
- 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX
- Supports 1K MAC address auto-learning and auto-aging
- IEEE 802.3x Flow Control protects against lost packets for reliable data transmission
- Compact, lightweight design
- Provides wall or desktop mounting
- Supports LevelOne Green power saving technology
