产品特点
电压驻波比(VSWR) |
2.0:1 |
极化类型 |
Vertical polarization |
天线接口类型 |
RP-SMA |
天线类型 |
Directional antenna |
性能
频段 |
2.4 - 2.5 / 4.9 - 5.875 GHz |
阻抗 |
50 Ω |
增益 |
6 / 8 dBi |
垂直波束宽度 |
65 ° |
天线增益水平(最大值) |
8 dBi |
2.4GHz~2.5GHz/4.9GHz~5.875GHz, 8 dBi, 50 Ω, 90 g

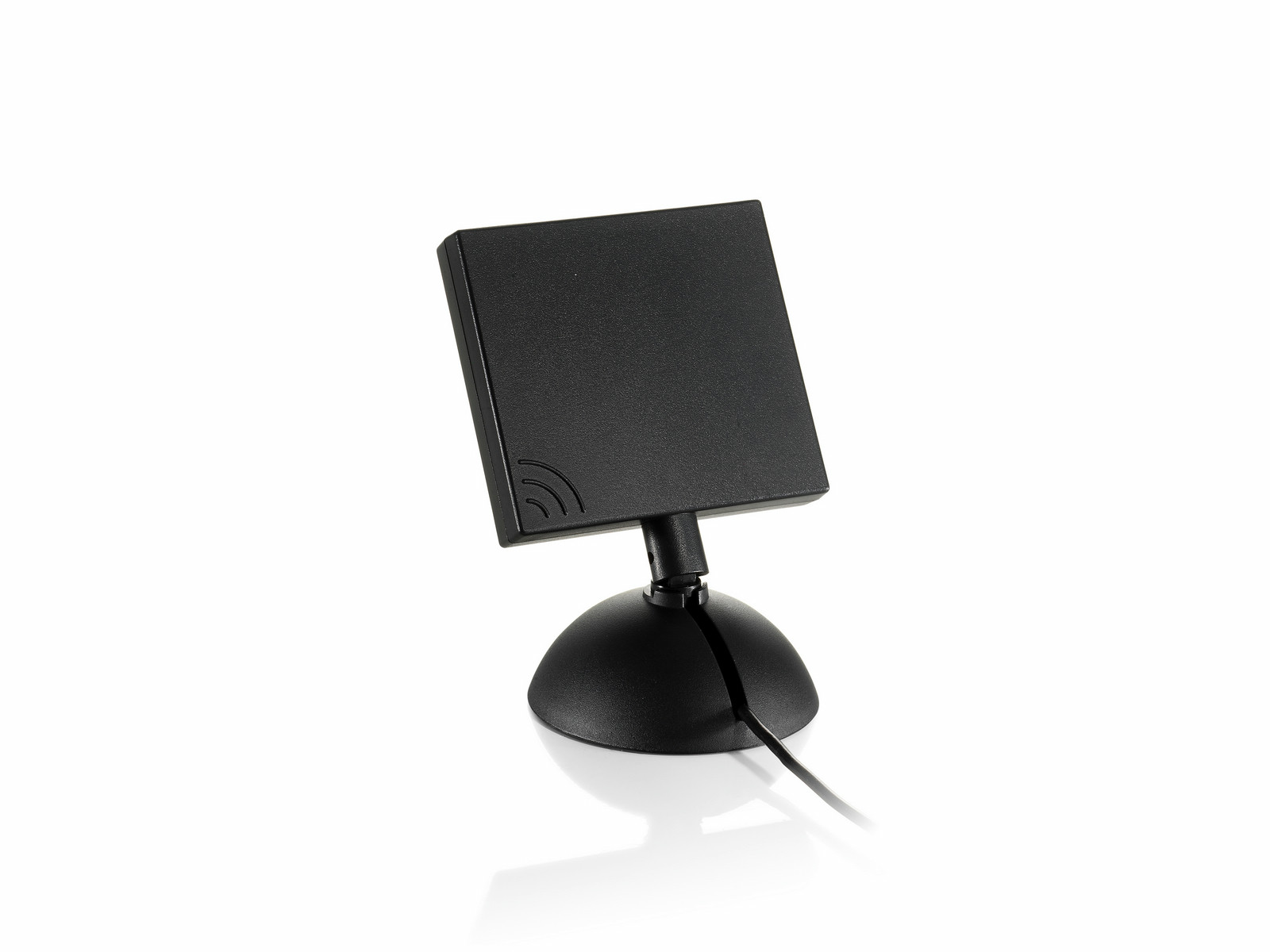

LevelOne’s WAN-1160 is a dual-band directional antenna which is designed for indoor wireless environments. With WAN-1160, you can improve signal strength/quality and increase signal coverage for the existing 802.11a 5.0GHz or 802.11b/g/n 2.4GHz wireless device in concentrated directions.
This antenna connects many wireless devices using SMA connector or the conversion adapter included in our WAN-1160 package. With the directional desktop panel design and sturdy stand, the antenna can be easily place in confined spaces to achieve maximum wireless coverage. There is no power-source needed in order to increase the flexibility of installation.
This antenna kit comes with antenna and the 1m ULA-100 extension cable and has been tested for mutually compatible functions with LevelOne’s wireless access point, indoor building-to-building bridge and other wireless products equipped with reverse SMA Male connector and detachable antennas.
- Dual-band for 802.11a 5.0GHz and 802.11b/g/n 2.4GHz Wireless applications
- Provides stable signals and extends coverage
- Directional operation
- Easy to located in limited space
- With ULA-100 1m cable for wireless device with SMA connector
