设计
可串联的 |
Y |
热键 |
Y |
平均故障间隔时间 |
75138.181 h |
按钮 |
Y |
液晶显示器指示灯 |
Y |
性能
热插拔支持 |
Y |
扫描间隔 |
5, 99 s |
最高操作距离 |
300 m |
系统要求
可支持的Linux操作系统 |
Y |
其他可支持的操作系统 |
Novell NetWare 3.x, Novell NetWare 4.x, Novell NetWare 6.x |
可支持的Mac操作系统 |
Y |
可支持的Windows操作系统 |
Y |
端口 & 界面
音响的连接 |
N |
视频接口类型 |
VGA |
计算机数量 |
8 |
控制台端口 |
USB A, VGA (D-Sub) |
控制台 USB 端口数量 |
2 |
键盘接口类型 |
USB |
鼠标接口类型 |
USB |
DC-IN插口 |
Y |
USB 连接器形状 |
USB Type-A |
环境条件
运行湿度范围(H-H) |
0 - 95% |
储存温度范围 (T-T) |
-20 - 60 °C |
重量和尺寸
深度 |
445 mm |
宽度 |
160 mm |
高度 |
45 mm |
另外
产品色彩 |
Black, Grey |
包括 AC 适配器 |
Y |
运行温度范围(T - T) |
0 - 50 °C |

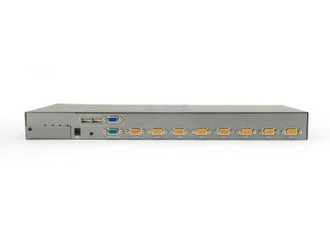

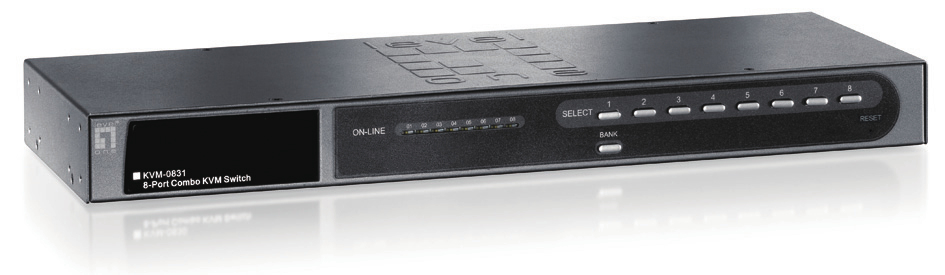

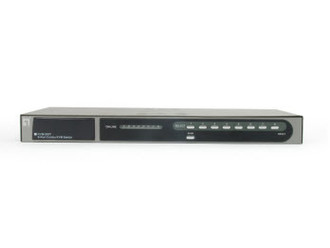

8-Port Combo KVM Switch, USB, VGA, 1920 x 1440px, 8 LEDs, 5~99 sec, 1U
The LevelOne KVM-0831 8-port combo KVM switch enables users to control and manage a server farm or computers connected to the KVM switch with either the local console or remote console port.
Local Console
The KVM-0831 Combo KVM Switch is easy to connect to a PS/2 or USB enabled keyboard and mouse with a VGA monitor through the local console port. This enables a user to control systems connected to the KVM switch directly.
Remote Console
In order to make use of the remote control feature, the KVM-0831 provides users with a greater variety of connectivity options through its expansion slot for optional modules.
LevelOne has available an optional Cat.5 Console Module for this purpose. The ACC-1000 Cat.5 Console Module allows for the transmission of a Cat.5 signal to from the controlling unit to units or computers connected to via Cat.5 cabling to the KVM-0831. The ACC-1000 Cat.5 Module converts the Cat.5 signal into a computer signal to give users the ability to control servers and PCs from a
remote location up to 300 meters away.
Large System Management
By making use of a Daisy chain, up to 120 computers can be connected to the KVM switch by cascading 8 KVM-0830/0831/0841/1630/1631/1641 together. This gives network administrator the ability to control larger groups of servers or systems from one console without the need to switching between different console stations.
The friendly user interface makes management of the KVM switch and systems connected to it, easy manageable. It also has security measures in place to protect systems from unauthorized access.
- Control servers and computers either locally via control port or remotely via optional modules through the module expansion slot
- Features an expansion slot for flexible installation with optional module choices
- Flexible auto-scan mode for flexible PC monitoring
- Built-in daisy chain port for cascading with KVM-0830/0831 or KVM-1630/1631 up to 8 units
- High video display quality up to 1920x1440
- Support Windows, NetWare, Unix, Linux, Mac OS and Sun Microsystems
