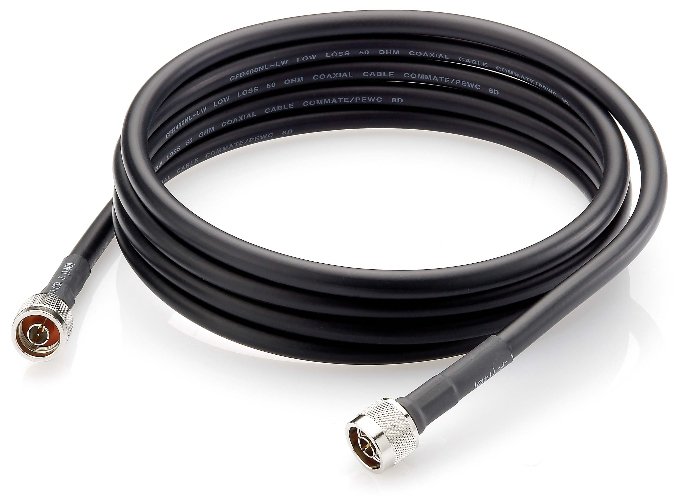

3m 400 Series N Plug to N Plug Antenna Cable
DDC 400 Series cable assemblies are manufactured from the highest performance Low Loss cable. It is the preferred cable for distances greater than distances greater than 3m, and has become the "standard" for all outdoor antenna cabling.
Weatherability
DDC 400 series cables designed for outdoor exposure incorporate the best materials for UV resistance and have life expectancy in more than 10 years.
- Impedance : 50Ω Nominal
- VSWR : 1.5 : 1 Max.
- Cable : CFD-400 Coaxial Cable
- Connector : N-Type plug to N-Type plug
- Operating Temp : -10°C~+60°C
- Storage Temp : -10°C~+70°C
- Conductor Size : 1/2.74 No./mm
- Insulation Thickness : (NOM.) 2.2mm
- Insulation O.D : (NOM) 7.2 mm
- Braid Shield Coverage : 85%↑
- Jacket Material : PVC or PE
- Jacket O.D : 10.3±0.25 mm
- Minimum Bend Radius : 25.4 mm
- Weight : 0.1 kG/m
- Tensile strength : 72.6 kG
- Operating temperature : -40/85 °C
- Conductor Resistance : 1.67 Ω/Km
- Impedance : (NOM.) 50 Ω
- Capacitance : (NOM.) 23.9 PF/FT
- Velocity of propagation : (NOM.) 85 %
- DC resistance, inner cond. : 4.56Ω/Km
- DC resistance, outer cond. : 5.41Ω/Km
- Shielding effectiveness : ≥90 dB
