端口 & 界面
| RJ-45输入端口 |
1 |

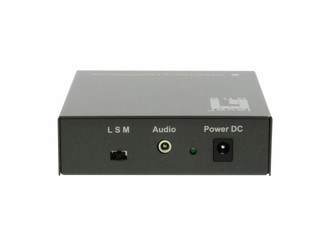

| DC-IN插口 |
Y |
| 3.5 mm 毫米输入端口 |
Y |

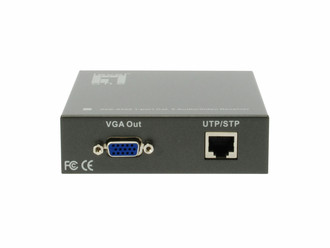

| VGA（D-SUB）输出端口 |
1 |
重量和尺寸
| 尺寸（宽 x 深 x 高） |
103 x 106 x 30 mm |
技术细节
| 最大分辨率 |
1280 x 1024 pixels |
| 可支持的电缆类型 |
Cat5, Cat5e, Cat6 |
| 最大传输距离 |
150 m |
| 类型 |
AV receiver |
| 原产地 |
Taiwan |
环境条件
| 储存温度范围 (T-T) |
-20 - 60 °C |
| 运行湿度范围(H-H) |
0 - 80% |
另外
| 产品色彩 |
Black |
| 包括 AC 适配器 |
Y |
| 运行温度范围（T - T） |
0 - 50 °C |
VGA, RJ-45, 3.5mm, 1280 x 1024, 150 m

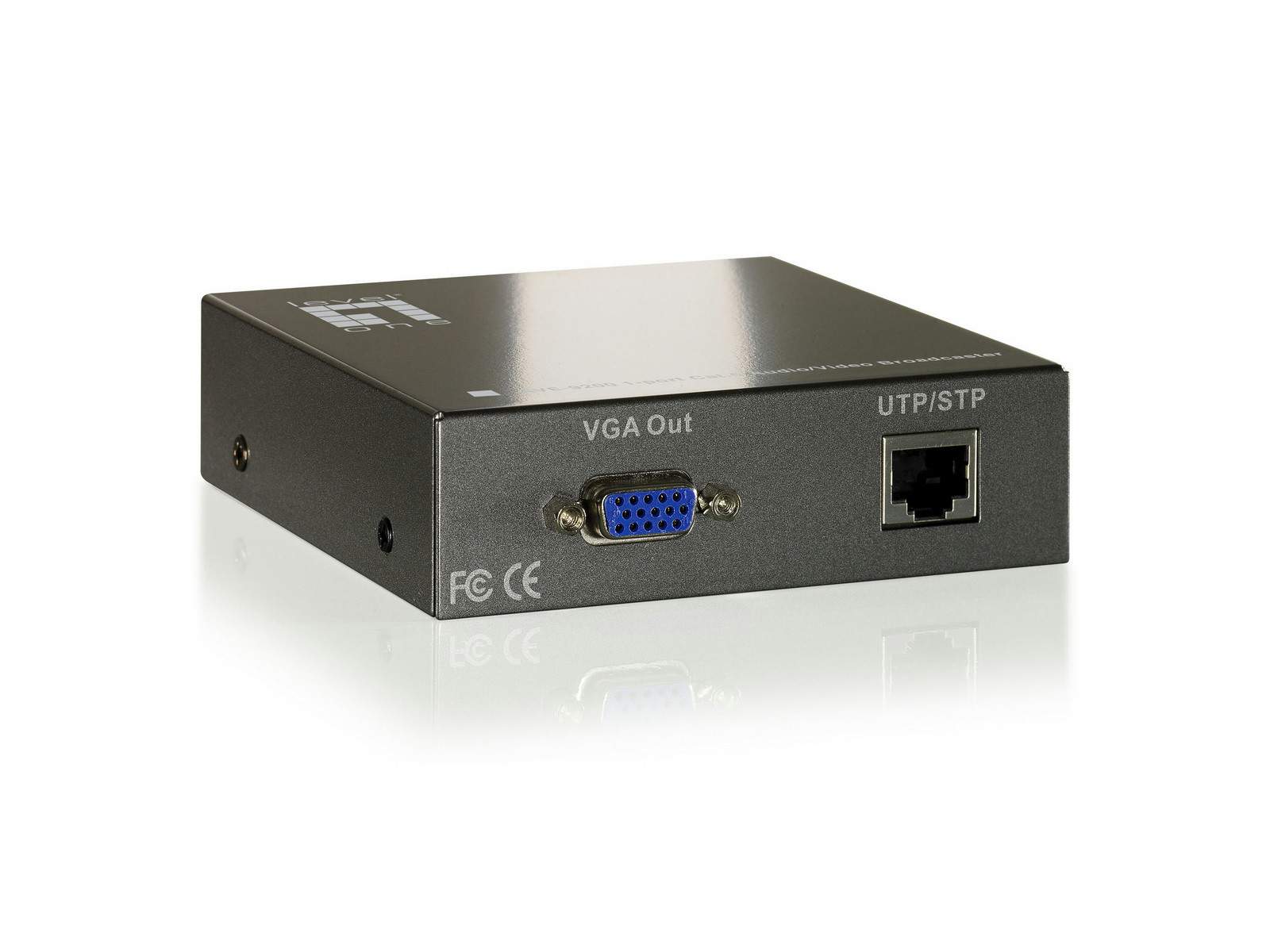

The LevelOne Cat.5 Audio/Video Extender is an ideal broadcast audio and video solution when operating with simultaneous to multiple remote monitors via Ethernet cable network. Our extender contains two devices, a broadcaster to collect audio sounds and video images for long-distance transmissions over popular Ethernet Cat.5 cable up to 150meter (500feet), and a receiver that receives the multimedia information and displays it on remote screens.
Flexible Implementation
The Cat.5 Audio/Video Broadcaster comes in two models: AVE-9201 with 1 RJ-45 port and AVE-9205 with 5 RJ-45 ports. The AVE-9205 allows you to deliver audio and video content to five remote locations simultaneously. Both models are daisy chainable with another broadcaster to increase your AV remote display number.
Efficient AV Display System
The Cat.5 Audio/Video Extender uses the existing Cat.5 cable network to transfer high quality video and audio contents to remote sides sites. You only need to install a pair of broadcasters and receivers into local and remote sides individually to provide the flexibility needed to access real-time multimedia content either from a remote side (broadcaster) or from a local site (receiver).
Easy Installation
With its compact design, our Cat.5 Audio/Video Extender easily fits on a desk or any limited space. No software or interface card is required. You can easily active this device by simply connecting it to the power source and to the network cable, further saving cable layout and cable installation cost.
- Remote monitor up to 150 m/ 500 feet
- Supports Ethernet cable Cat.5/5e/6
- Superior high VGA resolution up to 1280 x 1024@85Hz
- LEDs for power and data transmission
- Daisy chainable with another AV extender to upgrade its application
- No software installation required
- Easily install in few minutes

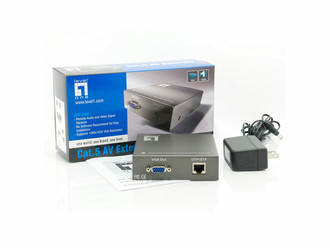

- Includes cable 0.9m (from PC or KVM switch to console)
- Compatible with DOS, MS Windows, Linux, Unix and Netware
