数据传输
| MAC 地址表 |
4000 entries |
| 支持数据传输率 |
10/100/1000 Mbps |
| 交换容量 |
16 Gbit/s |
| 最大数据传输率 |
1 Gbit/s |
其他功能
| 数据包包传输速度 |
14880/148800/1488000 p/s |
| 非操作相对湿度(非冷凝) |
5 - 95% |
| 网路功能 |
Ethernet, Fast Ethernet, Gigabit Ethernet |
联网
| 自动 MDI / MDI - X 检测功能 |
Y |
| 流量控制支持 |
Y |
| 全双工传输 |
Y |
端口 & 界面
| 基本交换 RJ-45 以太网端口数量 |
8 |
| 以太网铜缆技术 |
1000BASE-TX |

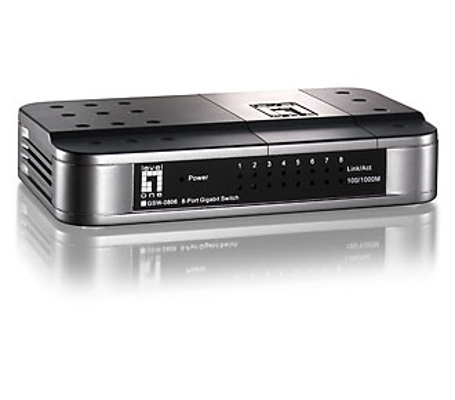

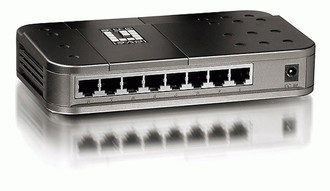

GSW-0806 8-port Gigabit Switch, 16Gbps Backplane, 128KBytes RAM, Auto-MDI/MDI-X, IEEE 802.3x Flow Control
Gigabit Ethernet Solution
LevelOne’s GSW-0806 Gigabit Ethernet Switch is an ideal solution for solving traffic block at the core of the network. It is equipped with 8 Gigabit Ethernet ports and reaching 16 Gbps backplane bandwidth thus creating high-speed backbone data transmissions. With its Gigabit Technology, this GSW-0806 is able to handle the multi-media, video streaming or real-time broadcast applications through your workgroup. Moreover, this switch will also fit into any enterprise level network to act as an exit to the backbone switch.
Switching Technology
This GSW-0806 combines dynamic memory allocation with a store-and-forward switching architecture to ensure that the buffer is effectively allocated for each port. It also controls the data flow between nodes to guarantee against packet loss. All ports support auto-MDIX allowing uplinking to another switch directly without cable selection hassle.
Easy to Use, Plug and Play
This unit is small and desktop-sized specially designed to fit in space-limited locations. Users can immediately use any features simply by attaching the cables and turning on the power to improve network backbone performance. For instant error detection, the switch is equipped with a full range of LEDs to help you monitor and troubleshoot problems on your network.
