技术细节
最大传输距离 |
30 m |
类型 |
AV transmitter |
可支持的电缆类型 |
Cat5 |
音频系统 |
stereo |
能量控制
电流 |
3.2 A |
外接电源转接器 |
Y |
工作电压 |
5 V |
端口 & 界面
RJ-45输出端口 |
8 |
HDMI输入 |
1 |
DC-IN插口 |
Y |

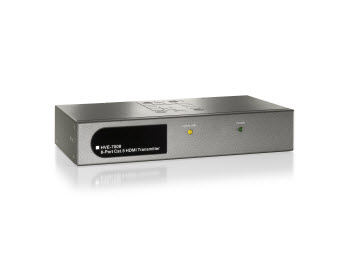

HVE-7008 - 8x RJ-45, 2x HDMI, 1080p, 30m, Stereo, Grey
- Supports HDMI signal extension over Ethernet cables (Cat.5 or Cat.6 recommended)
- Provides 1080p resolution over 30m
- Support a 70m extension
- HVE-7xxx series features a built-in video fine tuner
- No software needed, plug-and-play orientated setup
- HVE-7004 and HVE-7008 offers 4 and 8-port HDMI signal splitting and extension
- Support 4 or 8 simultaneous display connection and provides cascading support for 16 display units
- Fully compliant with HDMI 1.2 and compatible with Mini HDMI Cat-X Extender
Extend HDMI signals using Cat.5 cables
LevelOne HDMI Extenders are a cost-effective solution for broadcasting highdefinition (HDMI) audio and video signals using Cat.5 cables.
Improve the range and flexibility of HDMI
With the high cost and short range of HDMI cables, these extenders from LevelOne give you a flexible way to create high-quality digital signage networks. By offering longer distances at a lower price, these extenders make it easy to build large-scale HDMI networks for all deployments.
High-resolution to many displays
LevelOne HDMI Extenders transmit the highest quality 1080p video signal up to 70 meters. Since each device also acts as a HDMI signal booster, it makes it possible to cascade the signal at a single location to an unlimited* number of displays. (*Must use cascading port located on back of HDMI extender.)
Fine tuning
HVE-7000, HVE-7004, HVE-7008 all have a built-in equalizer to fine tune video quality. This helpful feature makes it easier to adjust the signal so the highestquality HDMI audio and video is received to the monitor.
Easy installation
As simple plug and play devices, there is no configuration required to use these extenders. Also, HVE-7000, HVE-7004, and HVE-7008 all come with a screw mount plate for permanent installations perfect for walls or ceilings in difficult locations.
