端口 & 界面
| I / O端子端口 |
1 |
| RS-485端口 |
1 |
| DC-IN插口 |
Y |
技术细节
| 内置存储器 |
128 MB |
| PTZ控制（平移/倾斜/缩放） |
Y |
视频
| Maximum frame rate |
120 fps |
磁盘驱动器
| 硬盘接口 |
Serial ATA, Serial ATA II |
联网
| 支持网络协议 |
HTTP/SMTP/DHCP/ARP/NTP/DNS/UPnP/FTP |

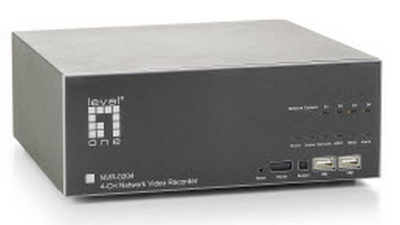

NVR-0204 - 4-CH Network Video Recorder
- Two 3.5 inch Disk Slot (SATA I or SATA II)
- Gigabit Ethernet (1000 Mbps) speeds
- Compression: MJPEG/MPEG-4 Part 2/H.264
- Support PTZ/Preset Point/Preset Sequence
- Motion Detected Event Display on E-Map
- Display Mode: Live View/Playback/Full Screen
- Resolution: HD/MegaPixel/FD1/CIF/QCIF
- Export Playback Videos to AVI
- Support schedule recordings and 2-way Audio
- Support External UPS and DI/DO.
- Smart Camera Search and Live image view
- Free Bundled NVR management Software to manage up to 16 NVR devices
Easy to install and use
NVR-0204 is a high performance Network Video Recorder for easy set up a reliable and cost-effective surveillance system for IP network cameras. It enables live view recording and playback for up to 4 IP network cameras via the local area network or over the internet simultaneously.
The system is compatible with many IP cameras, with no specific hardware or software required, just plug NVR-0204 into your LAN-connected device (switch or router) with few clicks and it will search and configure each connected IP cameras. With built-in IP based device, it offers a complete recording solution directly connects to your network, such as real-time monitoring, video recording and playback. It is a powerful solution that well suited for small scale applications such as retail store, office, bank or home surveillance systems.
High-quality and Internet viewing
With high-quality MPEG-4/MJPEG/H.264 codec compression, provides up to megapixel resolution, it will always give the same and consistent images quality as the original image form the IP cameras for video and real-time viewing. And most importantly, users can access the live view and playback functions over the internet, an attractive feature for shop and business owners that need to keep an eye on important assets while they're away.
Free bundled NVR management Software
The free bundled NVR management software can support to management up to 16 NVR devices, it can also support mixed NVR type (example 4/8/16-CH), so the NVR management software is able to supports up to 256 IP network cameras (max.).
