其他功能
| 支持数据传输率 |
6, 9, 12, 18, 24, 36, 48, 54 |
| 遵守工业标准 |
IEEE 802.11a/b/g, IEEE 802.3, IEEE 802.3u, IEEE802.3af |
端口 & 界面
| 广域网接口 |
Ethernet (RJ-45) |
| 接口 |
LAN |
| DC-IN插口 |
Y |
性能
| 2.4 GHz |
Y |
| 5 GHz |
Y |
| 支持服务质量（QoS） |
Y |
| 频段 |
2.4/5 GHz |
| 以太网的数据传输率 |
10, 100 Mbit/s |
| 频道/通道 数量 |
5 channels |
能量控制
| 电源类型 |
Proprietary Ethernet |
另外
| 数据传输率（最大） |
54 Mbit/s |
| 以太网路(RJ-45)连接接口数量 |
1 |

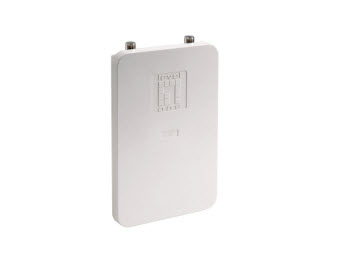

WAB-7400, 2x WLAN, 1x RJ45, white
Superior Wireless Mesh Performance
The LevelOne WAB-7400 is a dual-radio wireless mesh access point that was developed to tackle the professional-level wireless challenges any systems integrator will face. Whether it's creating an industrial grade wireless mesh network for a factory or warehouse, or building a flexible network on a large corporate campus, the LevelOne WAB-7400 does the job with simplicity and ease.
Dual Band Technology
When a client needs to transmit surveillance data around the premises, but they also want wireless internet access at each access point, what do you do? The LevelOne WAB-7400 comes dual-radio technology, allowing both requirements to be fulfilled. The 5 GHz radio creates a robust auto-forming and self-healing line of sight backhaul network to handle highbandwidth data, voice, and surveillance streams. The 2.4 GHz radio allows users to connect via the broadcast SSIDs for internet surfing or accessing resources on the LAN. Since each chipset operates on a different frequency, both networks offer professional-class performance with no overlapping interference.
Power over Ethernet (PoE)
With PoE functionality, system installers can deploy WAB-7400 in tight spots on the roof of tall buildings because all power and data is transferred using a single Cat.5 cable.
