其他功能
| 支持数据传输率 |
54/11 Mbps |
| 发射机输出功率 |
802.11g: 15dBm; 802.11b: 18dBm |
| 非操作相对湿度(非冷凝) |
10 - 95% |
| 无线技术 |
Wi-Fi |
| 开放空间最大射程 |
100 m |
| 遵守工业标准 |
IEEE 802.11g, IEEE 802.11b |
| 网路功能 |
Ethernet, Fast Ethernet |
性能
| 接收机灵敏度 |
802.11g: 10% PER, -68 dBm @ 54Mbps\n802.11b: 8% PER, -81 dBm @ 11Mbps |
| 2.4 GHz |
Y |
| 调制 |
BPSK, QPSK |
| 网上管理 |
Y |
| 频段 |
2.4 - 2.4835 GHz |
| 频道/通道 数量 |
13 channels |
另外
| 室内最大射程 |
50 m |
| 数据传输率（最大） |
54 Mbit/s |
| 以太网路(RJ-45)连接接口数量 |
1 |

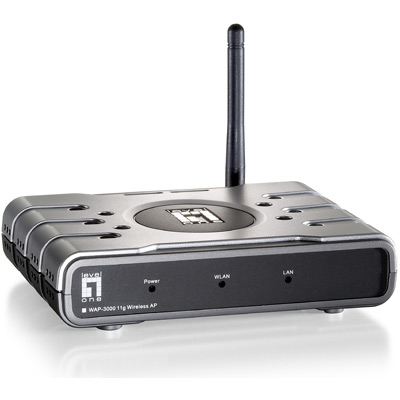

WAP-3000 54Mbps Wireless Access Point, Grey, 1x10/100Mbps LAN, IEEE 802.11g/b
The LevelOne WAP-3000 11g Wireless Access Point acts as a bridge between wired Ethernet and Wireless 11b/g networks for wireless clients to access available wired and wireless networks.
Multiple Operation Modes
The WAP-3000 supports AP, AP Client, WDS bridging and Repeater wireless operation modes for flexible deployment and use within a standard Local Area Network.
For standard operations, the WAP-3000 connects to a LAN, broadband ADSL router or network switch and provides instant network access to connected wireless clients.
With WDS+AP mode the WAP-3000 is able to act as a bridge between two or more networks, combining them into a single network to provide wireless users with access to both networks.
In Repeater mode, the WAP-3000 extends the wireless area network to different locations.
Robust Wireless Security
The WAP-3000 provides 64/128-bit WEP encryption as well as WPA, WPA2 secured connectivity for securing the Wireless Area Network and to prevent unauthorized access.
Extended Wireless Coverage
The WAP-3000 Wireless Access Point is compliant with the IEEE 802.11b (11Mbps) and IEEE 802.11g (54Mbps) standards and features a high-quality radio chip that is able to provide directional area coverage for up to 50 meters indoors and 100 meters outdoors.
Plug-and-Play Expansion of Home/Office Network
The LevelOne WAP-3000 Wireless AP is an easy to install, plug-and-play, access point with an easy to use Web-based user interface. The WAP-3000 requires little set-up and configuration and features an LED display for quick monitoring of network errors and activity.
