端口 & 界面
遥控器(IR)输出 |
1 |
分量视频(YPbPr/YCbCr)输出 |
1 |
DVI端口 |
N |
扬声器输出 |
3 |
RS-232C |
Y |
USB版本 |
2.0 |
HDMI端口数量 |
5 |
USB 端口数量 |
1 |
性能
模拟信号系统 |
NTSC, PAL |
酒店模式 |
Y |
集成电视调谐器 |
Y |
HDCP |
N |
无线局域网连接 |
N |
设计
边框宽度(顶部) |
13.6 mm |
边框宽度(底部) |
19.1 mm |
技术细节
面板锁定键 |
Y |
笔记本钢缆锁插槽类型 |
Kensington |
LED背光类型 |
Direct-LED |
音频
音效模式 |
Movie, News, Sports, Standard |
扬声器数量 |
2 |
显示器
HD 类型 |
HD |
原机长宽比 |
16:9 |
显示类型 |
LED |
另外
以太网路(RJ-45)连接接口数量 |
1 |
以太网连接器 |
Y |

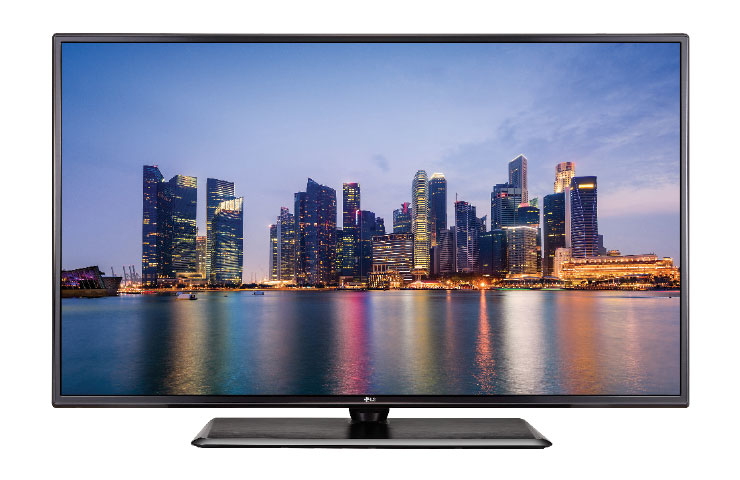

81.28 cm (32 ") 1366 x 768 (HD), PAL/SECAM, DVB-T2/C/S2, 20 W, HDMI x 5, USB 2.0 x 1, 100 - 240V, 50/60Hz, black
Welcome Screen/Video
First impressions are important. Having a warm greeting message with the Hotel name and its logo on the TV or a customised video in various formats will help the guest feel more welcome.
Enhanced Guest Experience
Pro:Centric provides customisable billboards and Electronic Program Guide (EPG) which allow easy navigation of TV channels and programs for customers in-room experience.
- Hotel Information, Weather, Map, Advanced wake-up time setting
- EPG
- PMS Interfaced Service ready
Easy Content Management
Pro:Centric enables centralised and intuitive in-room TV control from the TV settings to content creation and updates.
- Embedded Customisable Templates
- Up to 8 Hotel Channel Spooling
Optimised Total Cost of Ownership
Save on setup and operating expenses with the LG set top box (STB) intergrated solution.
- EZ-Manager 2.1 for more efficient initial configuration
- Remote Management via RF & IP
Commercial Swivel Stand
Expand the range of comfort for the guests with a commercial grade stand by allowing them to watch a TV from wider angle.
Remote Diagnostics (USB)
Enables service technicians to recognise technical issues in the TV quickly and easily through a USB device. The TV stores technical issues it encounters and can output it to a USB device. Service technicians can use the information to diagnose technical issues remotely.
External Speaker Out
By adding an additional speaker, guests can listen to the TV sound from a second location in the guest room. Even in the bathroom, guests can hear and control the TV sound level.
One Channel Map
The one channel mapping feature allows users to edit and list the channels of their choice from any of the multiple broadcasting signals (DVB-T, analogue, digital TV or radio).
