显示器
| 独立h/v同步 |
Y |
| 显示器尺寸 |
47 " |
| 垂直扫描范围 |
56 - 75 Hz |
| 长宽比 |
16:9 |
| 响应时间 |
9 ms |
| 复合同步 |
Y |
| 对比度 |
1300:1 |
| 显示器分辨率 |
1920 x 1080 pixels |
| 视角，水平 |
178 ° |
| 视角，垂直 |
178 ° |
| 显示器亮度 |
500 cd/m² |
| Full HD |
Y |
| 显示器 |
IPS |
| 显示类型 |
LCD |
端口 & 界面
| 复合视频 |
1 |
| USB2.0端口的数量 |
1 |
| 分量视频(YPbPr/YCbCr)输入 |
1 |
| HDMI端口数量 |
1 |
人体工程学
| 支持装配位置 |
Horizontal/Vertical |
| VESA 安装系统兼容界面 |
800 x 400 mm |
| 墙壁支架 |
Y |
性能
| 扬声器数量 |
2 |
| RMS的额定功率 |
20 W |
| HDCP |
Y |
| 内置扬声器 |
Y |
其他功能
| 最大模拟分辨率 |
1920 x 1080 pixels |
| 音频系统 |
ClearVoice II |
| 包装尺寸(宽度 × 深度 × 高度) |
1407.16 x 299.72 x 810.26 mm |
重量和尺寸
| 深度 |
660.4 mm |
| 宽度 |
1170.94 mm |
| 重量 |
38147.12 g |
| 高度 |
121.92 mm |
认证标准
| 认证 |
UL / cUL / CB / TUV\nFCC A, CE, KCC\nErp |
另外
| RS-232接口 |
2 |
| 水平扫描范围 |
30 - 68 kHz |
| 显示器的颜色数量 |
1.073 billion colours |
| 以太网路(RJ-45)连接接口数量 |
1 |
| 运行温度范围（T - T） |
0 - 40 °C |
47”, Multi-Touch, IPS, 1920 x 1080, 16:9, 500 cd/m2, DCR 20000 : 1, 9ms, HDMI, Component, Composite, USB, RS-232C, RJ-45, RMS 20W, 250W, Black

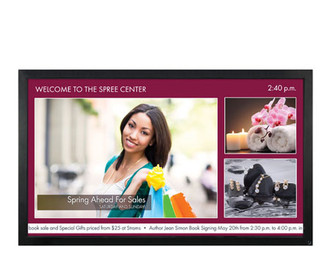

47" class (46.96" measured diagonally) IPS Edge Interactive Multi-Touch Display
- Multi-Touch Display: 5 Point Multi Touch (Windows 7)
- IPS In Plane Switching
- Native Display Resolution 1920 X 1080 (FHD)
- IR Spread Type (1mm Touch Resolution, within operation temperature)
Multi-Touch Display
The 47VT30MS-B provides 5 point multi touch (Windows 7) which is suitable for way-finding and other touch application.
In Plane Switching
Super IPS accurately display an image’s quality and color at an 178° ultra wide viewing angle. There is no fall-off in color accuracy and no diversion in contrast ratio at wide angles. From bright sunlight to the most challenging lighting environments these displays are designed to reproduce and maintain the ultimate color temperature for lifelike images.
