设计
| 最大PSU长度 |
160 mm |
| 最大CPU散热器高度 |
160 mm |
| 最大显卡长度 |
410 mm |
| 侧窗 |
Y |
| 格式要素 |
Midi-Tower |
| 类型 |
PC |
| 3.5" 托架数量 |
3 |
| 5.25" 托架数量 |
2 |
| 扩展插槽数 |
7 |
| 内部3.5英寸托架数量 |
3 |
| 2.5" 托架数量 |
1 |
冷却
| 安装的顶部风扇 |
1x 140 mm |
| 最大顶部风扇 |
1 |
| 最大侧风扇 |
3 |
| 支持的侧面风扇直径 |
140, 120 mm |
端口 & 界面
| USB 3.0(第 1代3.1)Type-A 端口数量 |
2 |

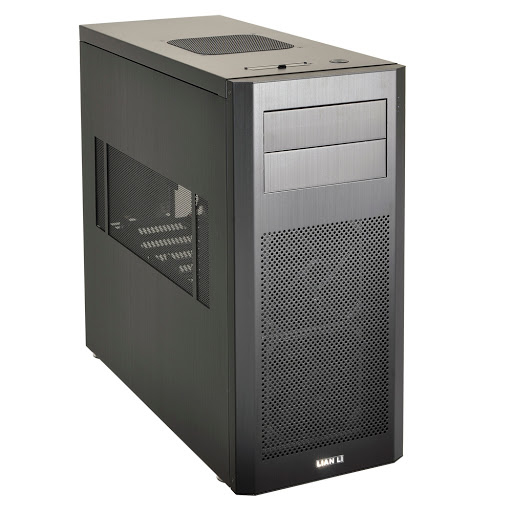

Mid Tower Chassis, ATX/Micro-ATX, Aluminium, 5.25" x 2, 3.5 x 3, 6.35 cm (2.5 ") x 1, Expansion slot x 7, USB 3.0 x 2, 210 x 490 x 452 mm, black
<b>Thermal Flow</b>
Intake the cool air through the front two 120mm cooling fans, and exhaust the hot air out by the top 140mm fan.
<b>HDD rack</b>
Up to three 3.5″ drives and one 2.5″ drives.
HDD rack can be removed to make more room for the high-end graphics cards.
When you remove the HDD rack, the back can mount two 3.5″ drives or 3.5″ , 2.5″ drives for each one.
<b>Compatibility</b>
VGA Card length: 285(410)mm / CPU cooler height: 160mm / PSU length: 160mm
<b>Support Integrated Water Cooler</b>
PC-18 designed to support the majority of commercially available integrated watercooler.
Side fan bracket,two 140mm or 120mm fans or radiator.
