设计
| 侧窗 |
Y |
| 最大PSU长度 |
290 mm |
| 最大CPU散热器高度 |
130 mm |
| 最大显卡长度 |
340 mm |
| 格式要素 |
Midi-Tower |
| 类型 |
PC |
| 3.5" 托架数量 |
4 |
| 扩展插槽数 |
7 |
| 2.5" 托架数量 |
3 |
冷却
| 支持的底部风扇直径 |
120 mm |
| 最大底部风扇 |
2 |
| 最大顶部风扇 |
2 |
| 支持的后部风扇直径 |
80 mm |
| 最大后部风扇 |
2 |
端口 & 界面
| USB 3.0（第 1代3.1）Type-A 端口数量 |
2 |

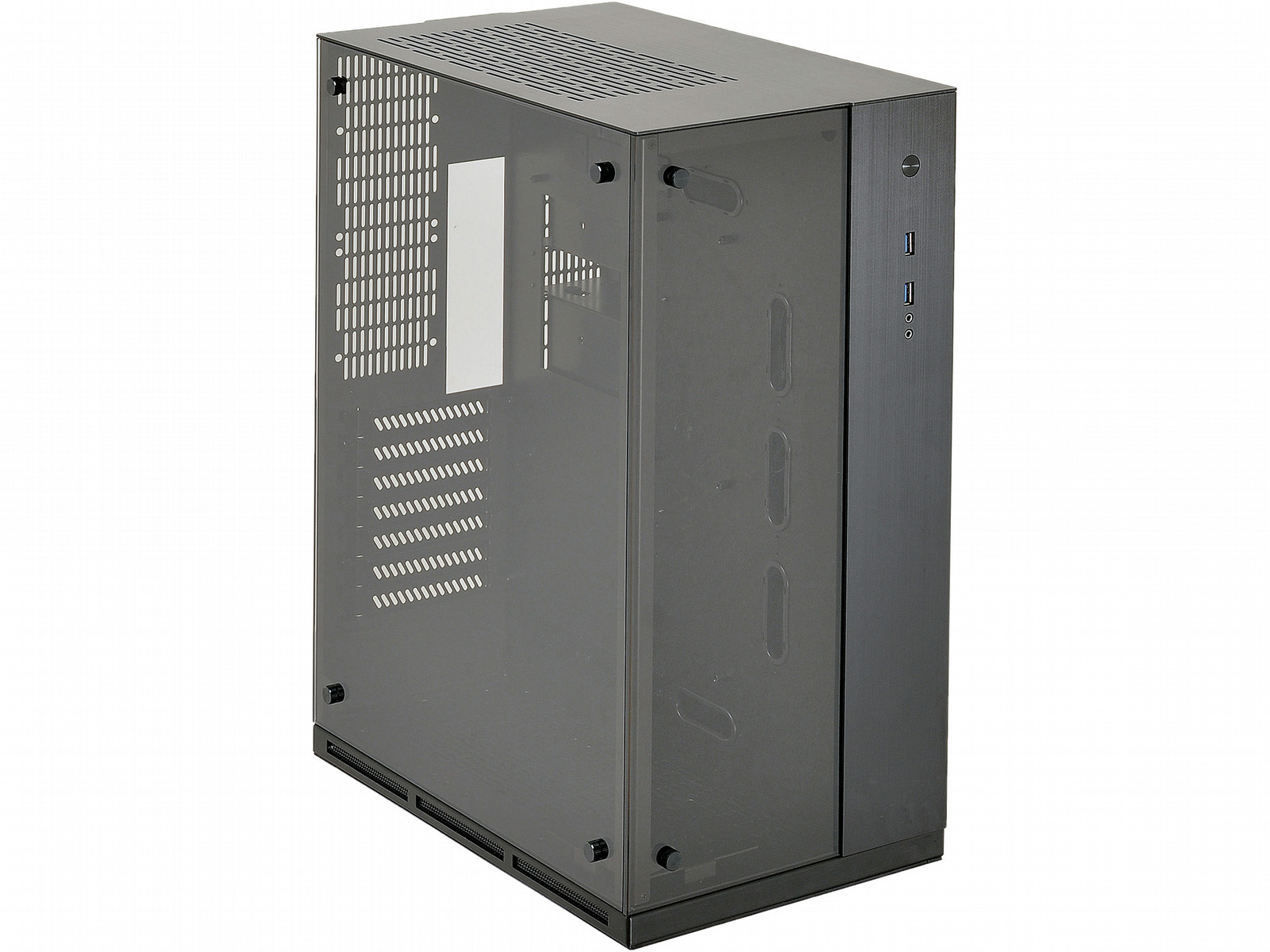

PC-O10 - Mid Tower, Aluminum/Tempered Glass, 8.89 cm (3.5 ") HDD x4/2.5" HDD x3, E-ATX/ ATX/ Micro-ATX, USB3.0 x2/ HD Audio, 7kg
The PC-O10 is a streamlined and modern mid tower case. By adopting the SFX/SFX-L PSU form factor, this chassis has a much slimmer profile compared to its PC-O9 and PC-O8 cousins. Lian Li cut the proportions to match that of a conventional tower, while maintaining the attractive and functional half glass, half aluminum design. With power efficiency ever on the rise, and an increasing number of high-wattage SFX-L PSUs available, enthusiasts no longer need to encumber their cases with bulky traditional ATX PSUs.
In spite of its leaner dimensions, the PC-O10 still fits E-ATX and Full ATX as well as microATX motherboards. With seven expansion slots, it supports multi-GPU setups with VGA cards as large as 340mm: plenty of room for even the best gaming builds. It accommodates CPU coolers as tall as 130mm. The PSU compartment can store up to four 3.5” and two 2.5” drives, with space in the main glass compartment for an additional 2.5” SSD. The dual-compartment layout puts attractive components in the limelight, while keeping cables, drives, and other less desirable parts out of sight.
You can purchase the optional O10-1 accessory kit to show off a dual-slot VGA card vertically with a riser cable in the same manner as the PC-O7. The kit replaces the standard expansion slot covers. Showcase your top-end graphics card with a unique orientation!
The bottom panel has mounts for two 120mm or one 140mm intake fan, with space for two 120mm outtake fans on the top panel. The back panel can additionally mount two 80mm fans. You can instead opt to install a 240mm radiator fitting 320mm x 120mm x 90mm on the top panel.
The PC-O10 includes two USB 3.0 and HD audio ports on its front panel. All of its fan mounts include removable, washable mesh filters to keep the case dust free. Water cooling enthusiasts will appreciate a removable, dedicated pump plate in the glass compartment with grommeted pass-throughs between compartments for elaborate custom loops.
