设计
| 侧窗 |
Y |
| 扩展插槽数 |
2 |
| 内部3.5英寸托架数量 |
2 |
| 2.5" 托架数量 |
1 |
| 最大PSU长度 |
200 mm |
| 最大CPU散热器高度 |
170 mm |
| 最大显卡长度 |
300 mm |
| 格式要素 |
Mini-Tower |
| 类型 |
PC |
| 5.25" 托架数量 |
1 |
冷却
| 前部风扇安装 |
1x 120 mm |
| 安装的后部风扇 |
1x 120 mm |
端口 & 界面
| USB 3.0(第 1代3.1)Type-A 端口数量 |
2 |
2 x 3.5" HDD, 1 x 2.5" HDD, Mini-ITX, 2 x USB 3.0, 3 kg
<b>FEATURES</b>

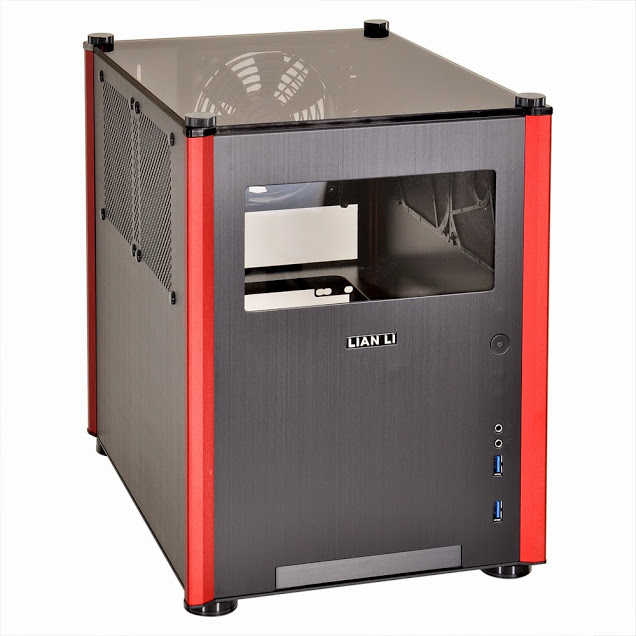

Side or front panel can be easy to remove, more space to change hardware, no longer constrained in a narrow space inside the case.
<b>Two Compartment Design (Separates Components into Two Heat Zones)</b>
The PC-Q36 features a two compartment design. The top section holds the Mini-ATX motherboard, graphics card, while the bottom compartment holds the HDD cage and the PSU, Slim ODD.
<b>Hard Disk Drive Cage</b>
3.5″ HDD x2 + 2.5″HDD x1。
<b>Compatibility</b>
VGA Card length: 300mm / PSU length: 200mm / CPU cooler height:170mm
<b>Integrated Water Cooler Support</b>
The PC-Q36 is designed to support the majority available integrated water coolers.
