带宽
| 支持数据传输率 |
11/54/150Mbps |
| 全双工传输 |
Y |
其他功能
| 连接/工作 LED |
Y |
| 非操作相对湿度(非冷凝) |
5 - 95% |
| 开放空间最大射程 |
300m |
| 遵守工业标准 |
802.11n/g/b |
| 网路功能 |
WLAN |
性能
| 接收机灵敏度 |
11Mbps -84dBm\n54 Mbps -73dbm\n300mbps -68dbm |
无线局域网的特点
| 支持无线局域网数据传输率 |
150 Mbit/s |
| 无线局域网连接 |
Y |
联网
| 最高操作距离 |
300 m |
| 芯片组 |
REALTEK |
| 频段 |
2.400 – 2.4835 GHz |
另外
| 室内最大射程 |
100m |
| 数据传输率（最大） |
300 Mbit/s |
| 以太网连接器 |
N |
| 连接方式 |
Wireless |
LCS-8031N1, 802.11n/g/b, Realtek, PCI 2.3, WEP, WPA, WPA2

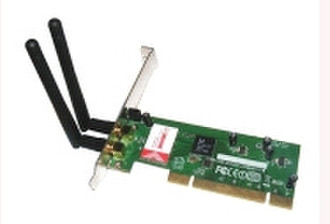

Wireless PCI Adapter
The LCS-8031N1 IEEE 802.11n Wireless PCI adapter provides users to launch IEEE 802.11n wireless network at 300 Mbps in the 2.4GHz band, which is also compatible with IEEE 802.11b/g wireless devices at 11/54 Mbps. You can configure this adapter with ad-hoc mode to connect to other 2.4GHz wireless computers, or with Infrastructure mode to connect to a wireless AP or router for accessing to Internet. This adapter includes a convenient Utility for scanning available networks and saving preferred networks that users usually connected with. Security encryption can also be configured by this utility.
- Compatible with IEEE 802.11n, 802.11b/g wireless standards;
- 2.4GHz Frequency band, MIMO 1T2R, Standard antenna 2dB;
- Complies with PCI 2.3;
- High Speed transfer data rate up to 300 Mbps, Transmit 150Mbps; Receive: 300Mbps;
- Supports QoS (WMM, WMM-SA, Client mode);
- Supports wireless data encryption with 64/128-bit WEP, WPA, WPA2;
- Supports Multiple BSSID;
- Range Coverage : Indoor 35~100 meters; Outdoor 100~300 meters;
- Compliant with FCC Part 15.247 for US, ETS 300 328 for Europe;
- Support driver for Windows 2000, XP and Vista, Windows 7;
- Supports auto-installation and diagnostic utilities.
