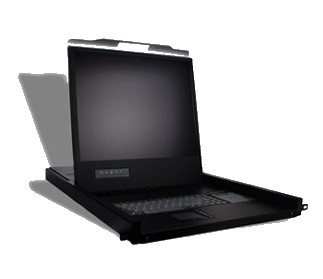

43.18 cm (17 ") TFT LCD, 8 Ports, 1280 x 1024
<b>CD console drawer</b>
- Rack mountable in 19" system rack (1U)
- Support PS/2 keyboard / mouse
- Touchpad mouse owns up-down scrolling function
- LED display for easy status monitoring
- One person easy-installation
- Module design for easy installation and maintenance
- The keyboard / touchpad module is also easily removed changing by required with variety of languages
<b>Modularized KVM switch module</b>
- Connect dual interfaces of computers via PS/2 and/or USB
- Support Windows 98/98E/2000/ME/XP/Vista/7/2003 server, Win NT, Unix, Linux, Mac OS9/ISX, SUN Microsystems
- Auto PS/2 and USB interface detection
- Supports resolution up to 1280 / 1024
- On-screen-display (OSD) and cascade chain functions
- OSD is intuitive menus driven for quick and efficient navigation
- An extra combo console for both PS/2 and USB is provided on the rear panel of KVM switch to manage LCD console KVM switch from an external console
- Support cascadable chain with 3 levels, control up to 64/256/4096 PCs, from a single console, cascaded unit does not need special configuration
- 3 types of KVM switching:
- Front panel push button
- Hot-key on LCD built keyboard or extra combo
- console PS/2 & USB keyboard
- Menu driven OSD (On-Screen-Display)
- Auto-scan function (time interval can be adjusted between 5-20 seconds when the auto-scan is enabled)
- Plug & Play (Windows 98/SE users might need your Windows CD to install the HID driver for USB keyboard / mouse)
- KVM firmware is upgradable via on-board mini-USB download connector and external mini-programmer
