端口 & 界面
| 主机接口 |
PCI Express x8 |
| PCI卡电路板 |
Half-height (low-profile) |
| 外部Mini-SAS端口 |
2 |
性能
| 内置存储器 |
1024 MB |
| 内存类型 |
DDR3 |
| 内存时钟速度 |
1333 MHz |
| S.M.A.R.T. 支持 |
Y |
| SSD支持 |
Y |
| 处理器频率 |
800 MHz |
| 芯片组 |
LSISAS2208 |
| 在线容量扩展 |
Y |
| RAID级别迁移 |
Y |

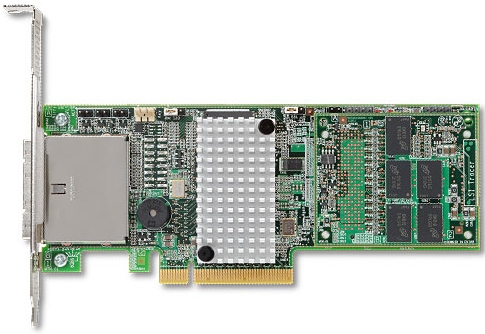

8-port 6Gb/s PCI Express SATA+SAS RAID controller, RAID levels: 0, 1, 5, & 6; 240 SAS / SATA HDDs & SSDs
- Eight external SATA+SAS ports.
- Two mini-SAS SFF-8088 x4 connectors.
- 6Gb/s throughput per port.
- LSISAS2208 Dual Core ROC 800MHz PowerPC.
- MD2 Low profile (6.6" X 2.536").
- x8 PCI Express 2.0 host interface.
- 1GB DDRIII cache (1333MHz).
- Optional battery backup unit (LSIiBBU09 remote mount).
- Connect up to 240 SATA and/or SAS devices.
- RAID levels 0, 1, 5 and 6.
- RAID spans 10, 50 and 60.
- Auto-resume on rebuild.
- Auto-resume on reconstruction.
- Online Capacity Expansion (OCE).
- Online RAID Level Migration (RLM).
- SSD support with SSD Guard.
- Global and dedicated hot spare with revertible hot spare support: Automatic rebuild; Enclosure affinity; Emergency SATA hot spare for SAS arrays.
- Single controller multipathing (failover).
- I/O load balancing.
- Comprehensive RAID management suite.
Second generation 6Gb/s SATA+SAS with unprecedented levels of performance.
Ideal for external storage environments using up to 240 SAS, SATA and solid state drives (SSDs).
Unsurpassed IOPs performance and advanced software options help users realize full benefits of SSD deployments.
Meets high I/O transaction demands of database and datacenter applications.
Provides the sustained data transfer rates and high sequential bandwidth to meet processing requirements of digital media, video and imaging environments.
