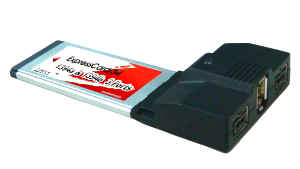

LyCOM EK-107 interface cards/adapter

LyCOM EK-107 interface cards/adapter

MPN: EK107
发送方式:
交货来源:
德国
更新价格... 📣 询问价格 Не поставляется
运输成本:
От

凡购买和价格 (Advertising *)

顶部
в наличии
* Alle Preise inkl. der jeweils geltenden gesetzlichen Mehrwertsteuer, ggfs. zzgl. Versandkosten. Alle Angaben ohne Gewähr. Preisänderungen sind in der Zwischenzeit möglich.

技术特点

顶部

其他功能

接口数量 3
Mac兼容性 Y
数据传输速度 800 Mbit/s

端口 & 界面

主机接口 ExpressCard
IEEE 1394/Firewire(火线)端口数量 3

性能

芯片组 TI

另外

连接方式 Wired
EK-107, 1 x IEEE 1394A, 2 x IEEE 1394B, ExpressCard - Compliant with PCI Express Specification, revision 1.0a;
- 1-lane 2.5Gbps PCI-e based ExpressCard/34;
- Supports ExpressCard/34 and ExpressCard/54 Notebook;
- 1.3 mm DC power jack for optional 12V1A DC Power Adapter;
- Work for Windows & Mac;
- Supported by built-in drivers on Windows 98, Windows Millennium, Windows 2000 and XP;
- Built-in 800Mbps driver supported by Mac OS X v10.2.4 or newer;
- Built-in FIFOs for isochronous transmit (2048 bytes), asynchronous transmit (2048 bytes), and receive (3072 bytes);
- 32-bit CRC generation and checking for receive/transmit packets;
- Supports data transfer rate up to 800 Mbps;
- Fully supports Provisions of IEEE P1394b Revision 1.33+ at 1-Gigabite signaling rates;
- Fully Supports Provisions of IEEE 1394a-2000 and 1394-1995 Standard;
- One External 1394a-2000 Fully Compliant Port (6-pin) at S400, S200, S100 speed;
- Two External Bilingual (9-pin) Ports at S800 or S400b speed;
- Supports Plug and Play;
- Chipset : TI;
- Fully RoHS compliant;
- ubCoreTM free Windows Vista Driver support.
