天线
| 可拆式天线（S） |
N |
| 天线增益水平（最大值） |
5 dBi |
性能
| 固件可升级 |
Y |
| 开关类型 |
Managed |
| 网上管理 |
Y |
| 重启按钮 |
Y |
| 频段 |
2.4 - 2.4835 GHz |
| 5 GHz |
N |
| 接收机灵敏度 |
-92dBm @ MCS0\n-70dBm @ MCS7\n-92dBm @ MCS8\n-70dBm @ MCS15\n-92dBm @ 6Mbps\n-72dBm @ 54Mbps\n-95dBm @ 1Mbps\n-90dBm @ 11Mbps\n-92dBm @ MCS8\n-70dBm @ MCS15 |
| 吞吐量 |
300 Mbps |
| 2.4 GHz |
Y |
| 自动频道选择 |
Y |
| 调制 |
16-QAM, CCK, 64-QAM, BPSK, DQPSK, OFDM, DSSS, DBPSK, QPSK |
| 以太网的数据传输率 |
10, 100 Mbit/s |
| 内置存储器 |
64 MB |
| 闪存 |
8 MB |
另外
| 以太网路(RJ-45)连接接口数量 |
1 |
| 数据传输率（最大） |
300 Mbit/s |
300Mbps, 2.4GHz, IEEE 802.11b/g/n, 5dBi, 64MB SDRAM, 8MB Flash, 1x10/100Mbps RJ45, White

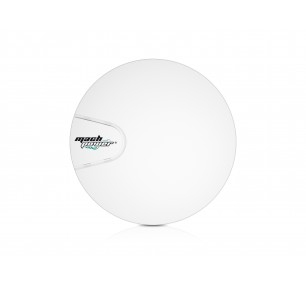

WL-ICNAP48-052 is smart type indoor ceiling access point, it designed for home environment or busi- ness-class, such as hotels, coffee house, shops, university campus... With 2T2R 2.4G MINO technology, the data rate can be 300Mbps, max 32 users access into together.With the aesthetic ceiling design, WL-ICNAP48-052 can be deployed easily on ceiling or in crawlspaces. Integrated 802.3af Power over Ethernet (PoE) allows installation in areas where power outlets are not readily available.
<b>300Mbps high speed</b>
Compliant with IEEE 802.11b/g/n, providing fast speed 300Mbps on 2.4G frequency, which make files transfer- ring faster and video streaming smoother.Just enjoy yourself and link your world by this wireless device.
<b>Power Over Ethernet</b>
The PoE port on the back panel allows both power and data to be carried over a single Ethernet cable to WL-ICNAP48-052 with the PoE adapter or PoE switch. It make WL-ICNAP48-052 can be deployed in area where power outlets are scarce or not available.
<b>Multi Operation mode to meet with different requirement</b>
It with Wireless Access Point, Router and wifi repeater operation mode, can be used for wifi coverage, home router or extend the exist wifi signal.
<b>Support AC management, VLAN, easy to manage</b>
WL-ICNAP48-052 support AP address server, it can be assigned IP address automatically when power on. What’s more, compliant with AC controller, easy to configure and manage 252 PCS AP’s at same time. With VLAN function, it can be assigned SSID to different users.
