技术细节
| 扩展坞接口类型 |
Not supported |
| 频率范围 |
28 - 30000 Hz |
| 墙壁支架 |
N |
音箱棒音
| 中端驱动数量 |
4 |
| 高音喇叭驱动器数量 |
2 |
| 交叉频率 |
2300 Hz |
| 低音单元驱动器数量 |
2 |
| Mid-range driver diameter |
70 mm |
| Woofer diameter |
140 mm |
| Tweeter diameter |
20 mm |
其他功能
| 音箱棒尺寸（宽x深x高） |
730 x 372 x 98 mm |

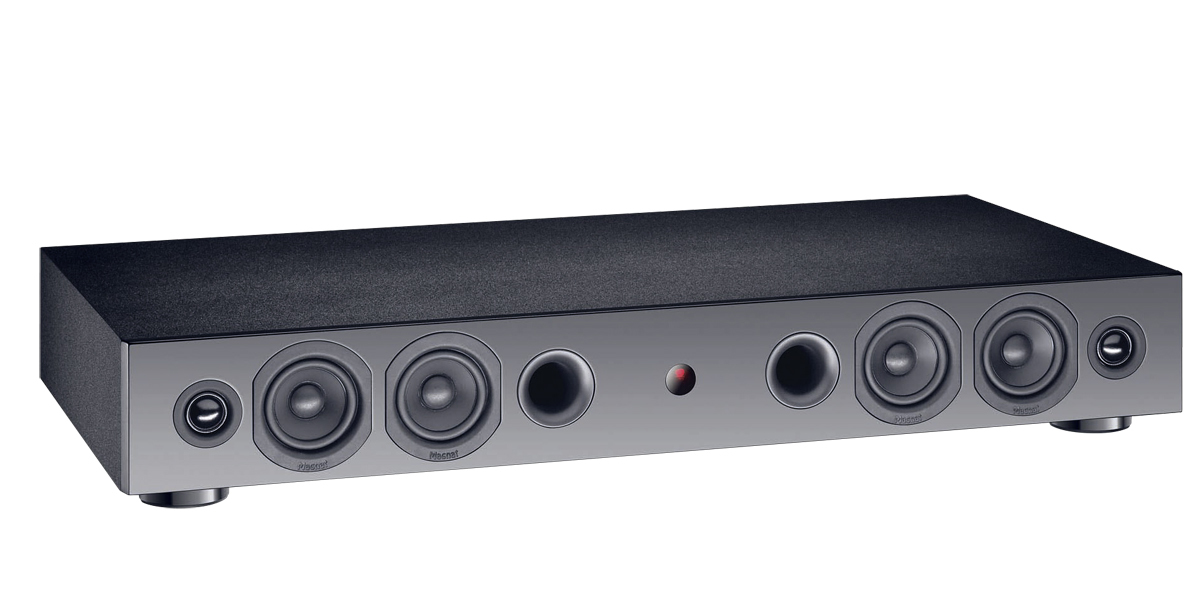

400BTX - 100W RWS, 200 W, max, 28 - 30000 Hz, 10.5 kg
Powered home cinema sound deck with built-in subwoofers and Bluetooth® functionality
The 400 BTX is a fully active home-cinema sound deck on which the flat screen may be stood – practical down to the final detail. Subwoofers for full and emphatic bass reproduction have also been built in, which means that it´s not necessary to set up an additional active subwoofer – this saves both space and effort.
MAGNAT has created an exclusive "orchestra of drivers" to achieve the best possible quality of sound from all sources: two powerful 14 cm downfire long-throw bass chassis using bass-reflex technology, four 7-cm low-midrange speakers for a highly faceted range of presence sound and perfect coupling to the two subwoofers as well as two 20 mm fabric domes with top-class efficiency for the treble range. A meaty 200 watts of music performance and a powerful 100 watts of actual power output deliver a powerful volume for the evening´s action film or live concert from the grand arena.
Highlights
- Powered home cinema sound deck with built-in subwoofers and Bluetooth® functionality
- Fully-fledged and dynamic home cinema sound from a single speaker system
- Integrated high-performance digital amplifier with digital signal processor (DSP); no additional amplifier is required
- Genuine two-way system at the front with four midrange drivers for exceptionally high dynamic performance
- Two integrated subwoofers for a powerful bass range, which are discreetly positioned on the underside of the housing for high efficiency (‚Downfire‘ principle)
- Perfect integration into the living room underneath flat screen TVs thanks to its flat construction
- Suitable for accommodating all common sizes of TV thanks to its highly resilient MDF housing
- The latest high-end Bluetooth® 4.0 standard „aptX“ ensures the transmission of CD-quality music
- Realistic, DSP-controlled 3D surround sound for movies and music
- Complete control is ensured via the supplied remote control
- Stereo RCA cable and optical digital cable including
Principle
3 way bass reflex, built-in subwoofer
Equipment
- 2 x 20 mm dome tweeter
- 4 x 70 mm Midrange
- 2 x 140 mm Subwoofer
Connections
Numerous connection options for all source devices: Analogue stereo, digital optical, digital coaxial, wireless via Bluetooth®
