超低音音箱
| 超重低音扬声器类型 |
Active subwoofer |
| Subwoofer driver diameter |
260 mm |
| 超重低音炮混响频率 |
50 - 150 Hz |
| 超重低音功率有效值 |
200 W |
| 超重低音扬声器的峰值功率 |
400 W |
| 超重低音频率范围 |
20 - 200 Hz |
| Subwoofer driver diameter (imperial) |
10 " |
重量和尺寸
| 超重低音扬声器宽度 |
317 mm |
| 超重低音炮重量 |
25800 g |
| 超重低音扬声器厚度 |
450 mm |
| 超重低音扬声器高度 |
510 mm |

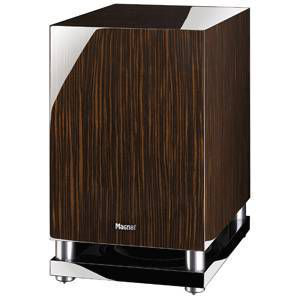

Powered bassreflex subwoofer, downfire, 260mm, 200W RMS /400W Max, 20-200Hz, Piano Palisander
Woofer:
- 260 mm high-power long-throw woofer with Klippel® optimized magnet system
- Ventilated high-performance voice-coil ensure a high degree of operational reliability
- Coated and hardened paper cone for deep and dynamic reproduction
Amplifier:
- High-performance amplifier with fully discrete circuitry
- Toshiba power transistors
- Clearly arranged control panel made of brushed aluminium with large, integrated heatsink
- Real-time Limiter for less distortion and to prevent surmodulation of the speaker
- Active SPL equalization up to 150 Hz
- Standby circuit with low power consumption <1W
Cabinet:
- Down fire construction
- Noble high-gloss lacquering
- Very solid construction using MDF panels and elaborated struttings
- Airflex port with generously dimensioned opening for optimum bass loading
- 30 mm solid base plate with big aluminium/rubber resonance absorbers
