音箱棒音
| 高频扬声器直径 |
0.8 " |
| Mid-range driver diameter (imperial) |
3.7 " |
| 中端驱动数量 |
2 |
| 高音喇叭驱动器数量 |
2 |
| 音箱棒RMS功率 |
80 W |
| 交叉频率 |
4000 Hz |
| Mid-range driver diameter |
94 mm |
| Tweeter diameter |
20 mm |
超低音音箱
| 超重低音功率有效值 |
80 W |
| 低音调整 |
Y |
| 无线低音炮 |
N |
| 超重低音频率范围 |
20 - 200 Hz |
| 低音反射 |
Y |
| 含超重低音炮 |
Y |
| 超重低音炮混响频率 |
50 - 150 Hz |
| 超重低音箱位置 |
Separate |
| 超重低音扬声器类型 |
Active subwoofer |
技术细节
| 扩展坞接口类型 |
Not supported |
| 频率范围 |
20 - 25000 Hz |
| 墙壁支架 |
N |
| 与苹果产品对接兼容性 |
Not supported |
重量和尺寸
| 音箱棒重量 |
4100 g |
| 超重低音炮重量 |
9500 g |
端口 & 界面
| 数字音频光纤入 |
1 |
| AUX 输入 |
Y |
| DC-IN插口 |
Y |
| HDMI端口数量 |
2 |
| HDMI输入 |
2 |
其他功能
| 超重低音扬声器尺寸(宽x深x高) |
265 x 345 x 365 mm |
| 音箱棒尺寸(宽x深x高) |
895 x 90 x 96 mm |
160W RMS / 320W PMPO, 20Hz-25kHz, 13.6kg, Black

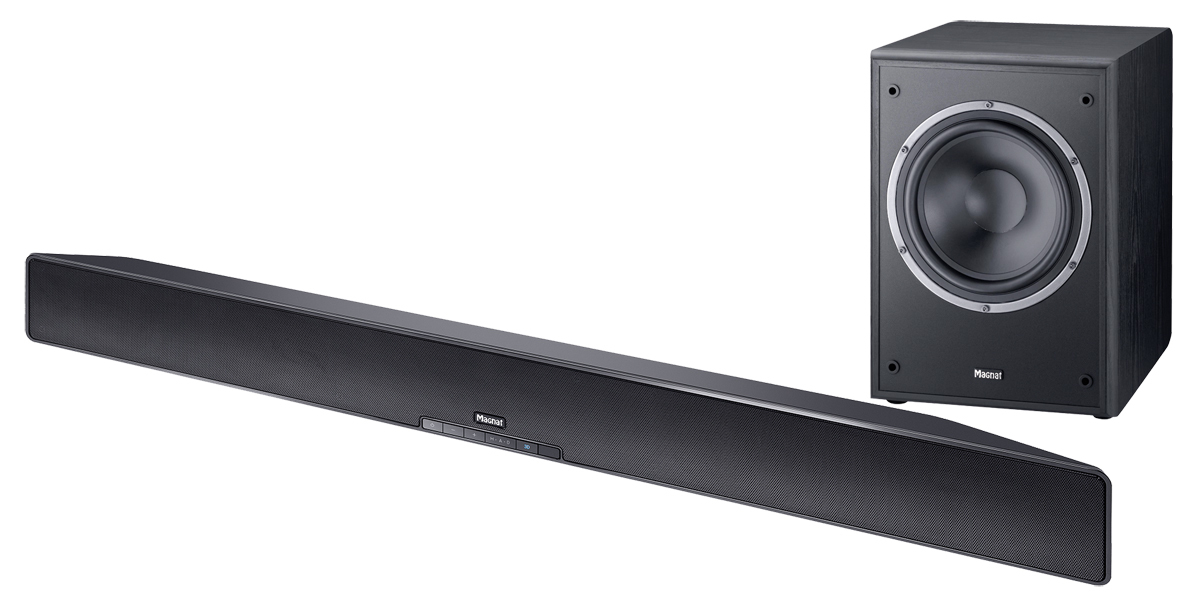

Powered home-cinema soundbar + subwoofer as set
The WSB 225 Soundbar-Subwoofer combination is a great-sounding surround solution that comes equipped with sophisticated Dolby decoding technology, optical digital input and HDMI connection.
The Soundbar itself delivers 3D Surround Sound with just one loudspeaker – all drivers are controlled by a powerful amplifier module. After their runtime and levels have been corrected, the signals from the rear channels are added to the front channels to produce a spatial sound via precisely calculated angles of dispersion and reflections that is otherwise only possible with five individual boxes. As a result of the meaty bass foundation, the combination of the active soundbar and active subwoofer promises profound home-cinema fun.
