技术细节
全屏幕尺寸(宽X高) |
300 x 300 cm |
对角线 |
167 " |
可视屏幕宽度(W) |
3000 mm |
可视屏幕高度(H) |
3000 mm |
格式 |
Square |

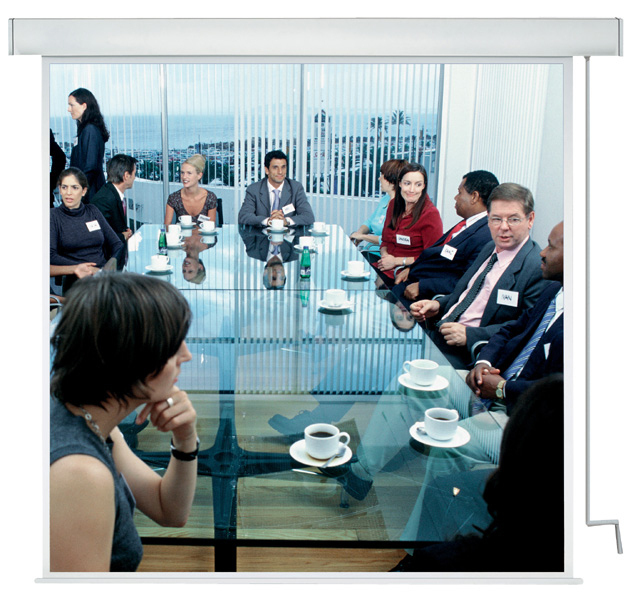

RollFix Premium Hand-Crank with FM, 300 x 300 cm, Type D
Improved mounting thanks to FM - Flexible Mountingangles -
RollFix Premium Hand-Crank - large-format projection with no electrical installation
Meets all demands placed on a high quality screen.
NEW Mounting System
-NEW: Flexible Mountingangles "FM" for direct wall- or ceiling mounting.
Free positioning of the angles on the housing up to max. 55 cm from each side.
Mounting angles can easily be adjusted according to mounting requirements.
-Removable hand crank prevents unauthorised use.
-User friendly thanks to smooth-running crank drive (at the right side).
-Projection surface infinitley adjustable.
-Wall or ceiling mounting possible, supplied with a universal mounting attachment.
-Square steel casing, 1,5 mm strong (diameter 8/8 cm or 10/10 cm, depends on surface width).
-NEW: Casing colour: white, RAL 9003.
-Suitable for installation into suspended ceiling wiht optional accessories.
-Screen surface sits exactly in the casing thanks to a conic weight bar.
-For integration into a suspended ceiling, a functional and innovative installation housing or an installation frame for clean ceiling finish are optionally available.
Projection surfaces
-Front projection, type D.
-Gain factor, acc. to DIN 19045, approx. 1.2.
-Matt white, woven fabric base.
-Back: opaque.
Highlights
-Universal mounting brackets.
-Available in two fabrics.
-Available in different sizes.
-Suitable for installation into suspended ceiling wiht optional accessories.
-NEW: Screen surface sits exactly in the casing thanks to a conic weight bar.
