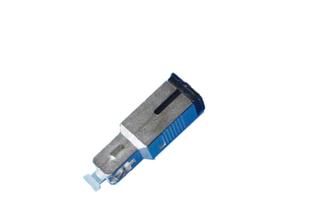

Microconnect FIBSCATT wire connector

SC Fixed attenuator plug-in - A fiber optic attenuator is a passive device used to reduce the amplitude of a light signal without significantly changing the wave form itself. This is often a requirement in Dense Wave Division Multiplexing (DWDM) and Erbium Doped Fiber Amplifier (EDFA) applications where the receiver cannot accept the signal generated from a high-power light source.
- SC attenuator feature a proprietary type of metal-ion doped fiber which reduces the light signal as it passes through. This method of attenuation allows for higher performance than fiber splices or fiber offsets or fiber clearance, which function by misdirecting rather than absorbing the light signal. SC attenuator are capable of performing in the 1310 nm and 1550 nm for Single-Mode, and 850nm for Multi-Mode (but only attenuation as 2dB,5dB,10dB,15dB for 50/125um and 2dB,5dB).
- SC attenuator are capable of withstanding over 1W of high power light exposure for extended periods of time, making them well-suited to EDFA and other high-power applications.
- Low Polarization Dependent Loss (PDL) and a stable and independent wavelength distribution makes them ideal for DWDM.
