数据传输
| MAC 地址表 |
32000 entries |
| 存储转发 |
Y |
| 交换容量 |
128 Gbit/s |
| 巨型帧 (Jumbo frames) |
9000 |
| VLAN 数量 |
4000 |
| 队列数量 |
8 |
| 吞吐量 |
95.23 Mpps |
联网
| 私人 VLAN |
Y |
| 广播风暴控制 |
Y |
| VLAN支持 |
Y |
| IGMP侦听 |
Y |
| 示踪 VLAN |
Y |
| 速率限制 |
Y |
| 连线运作识别 |
Y |
| 电缆传输距离识别 |
Y |
| 基于端口的 VLAN |
Y |
| 10G支持 |
Y |
安全
| SSH / SSL支持 |
Y |
| 存取控制清单(ACL) |
Y |
端口 & 界面
| SFP +模块插槽数量 |
4 |
| 基本交换 RJ-45 以太网端口类型 |
Gigabit Ethernet (10/100/1000) |
| 控制台端口 |
RS-232 |
| SFP模块插槽数量 |
20 |
| Combo SFP 端口数量 |
4 |

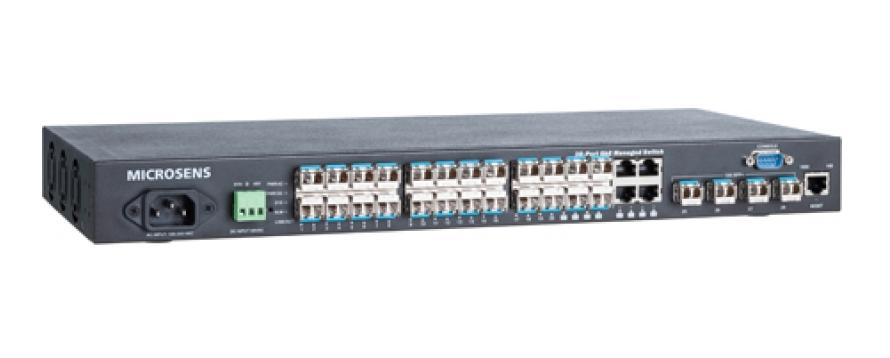

24x SFP, 4x SFP+, 5x RJ-45, 48.26 cm (19 ") 1U, 230 VAC, 48 DVC
The next generation L2+ Carrier Ethernet Access Fiber switch from MICROSENS is a 20 port GBE SFP, 4 port Combo GBE (RJ-45/SFP) and 4 port 10 GBE (SFP+). The switches fulfill all current requirements of carrier switches and meets all necessary standards like IEEE 802.3/u/x/z/ab/ae.
It provides the ideal combination of affordability and capabilities for Carrier Access networking including IEEE802.3ah MAC Layer OAM, IEEE802.1ag Ethernet CFM, ITU-T Y.1731 Ethernet OAM Performance Monitoring, ITU-T G.8031 Ethernet Linear Protection, ITU-T G.8032v2 Ethernet Ring Protection Switching, Sync-Ethernet(by request) and IEEE1588v2 PTP for Carrier Ethernet management requirement.
It is suitable for Fiber To The Office (FTTO) and Carrier Ethernet applications and helps you create a more efficient, better-connected workforce based on Fiber optics. This switch can be managed through RS-232 serial port, or through Ethernet port using CLI or Web-based management. With the SNMP agent, the network administrator can manage the switch, configure and control in a friendly way. It supports AC and DC dual power input (100..240 VAC / 48 VDC) for power redundancy requirement.
