性能
| 自动 MDI / MDI - X 检测功能 |
Y |
| 以太网的数据传输率 |
10, 100 Mbit/s |
| 2.4 GHz |
Y |
| 5 GHz |
N |
| 内置存储器 |
64 MB |
| 闪存 |
16 MB |
| 内置处理器 |
Y |
设计
| 放置 |
Table |
| 液晶显示器指示灯 |
Y |
| 內置式 |
N |
端口 & 界面
| USB 连接器形状 |
USB Type-B |
| DC-IN插口 |
Y |
另外
| 包括 AC 适配器 |
Y |
| 以太网路(RJ-45)连接接口数量 |
2 |
650 MHz, 64 MB RAM, Wi-Fi 802.11b/g/n, 2.4GHz, PoE, microUSB, 11-57 V, RouterOS, 68 x 68 x 19 mm

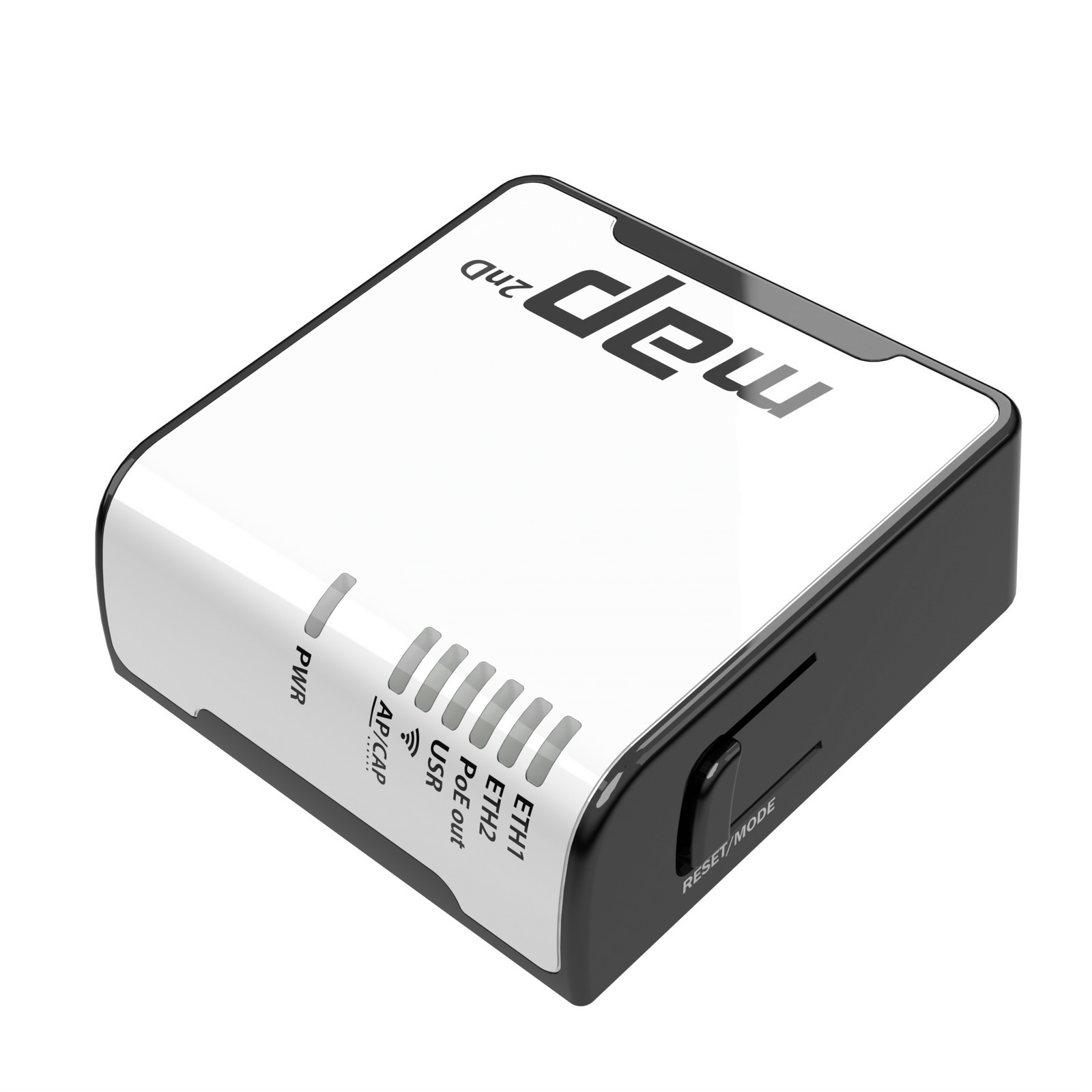

The mAP (micro Access Point) is a tiny size wireless Dual-Chain 2.4GHz Access Point with full RouterOS capabilities. It is very portable, since it accepts power from a wide variety of sources - USB, Passive PoE and power jack. It also works as a PoE injector - the second Ethernet port provides up to 500mA of power to another device, for example, you can connect a SXT CPE device to it.
