显示器
| 垂直扫描范围 |
58 - 85 Hz |
| 有效显示区域（宽×高） |
1209 x 681 mm |
| HD 类型 |
Full HD |
| 显示类型 |
LCD |
端口 & 界面
| DVI端口 |
Y |
| S-Video输入 |
Y |
| 扬声器输出 |
1 |
| 音频（左、右声道）输出 |
1 |
| HDMI输入 |
1 |
| RS-232C |
Y |
| USB端口 |
N |
| HDMI端口数量 |
1 |
| 分量视频(YPbPr/YCbCr)输入 |
1 |
| VGA（D-SUB）输入端口 |
1 |
| DisplayPort 数量 |
1 |
另外
| 水平扫描范围 |
31.5 - 91.1 kHz |
| 以太网连接器 |
Y |

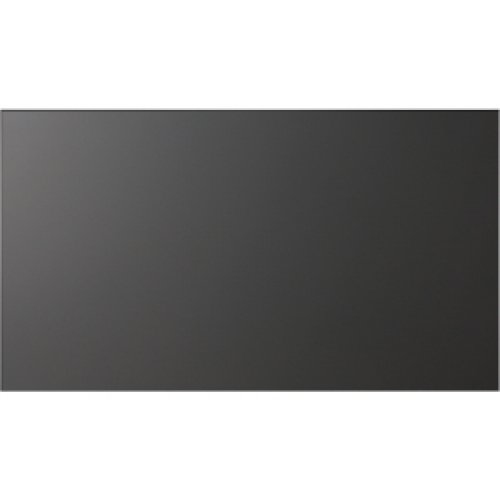

55″ Full HD, 500 cd/m², 1920 x 1080px, 10ms, Black
55" Full HD, Direct-Lit LED Super-Narrow Bezel LCD Monitors
Features Designed for Your Application
Mitsubishi monitors answer your need for digital signage, message boards, or broadcast displays to enhance your facilities with everything from advertising to welcome messages to vital, up-to-the-minute news and information. Mitsubishi monitors are feature rich and offer great durability.
Full HD, Direct-Lit LED LCD Monitors with Super-narrow Bezel
Commercial-grade LED-backlit panels with high brightness and contrast, and featuring a super-narrow 5.3mm bezel that minimizes image content loss, a critical factor in multi-screen applications.
Easy Operation & Versatile Connectivity
OPS Slot – Open Pluggable Specification compatibility allows use of a personal computer card, 3G-SDI, etc., enabling a wider scope of applications.
AMX/Crestron Compatible – Control commands can be sent from a computer through the LAN network to enable setting changes and remote diagnosis of multiple displays for efficient, centralized management.
DVI Digital Daisy Chain – Used with a DVI-D output terminal, daisy chain connection to multiple monitors (up to four) can be realized on a digital basis.
2 X 2 Multi Display Bundle Kit
LM55S1-2X2B – Multi Display Bundle Kit for LM55S1(W) Monitor
The LM55S1-2X2B is a 2×2 multi display bundle kit for the LM55S1(W) monitor. The kit includes 4 LM55S1(W) monitors, 4 BR-LM1KK wall mount brackets and IR remote kit. It also includes four 4m DVI-D cables for daisy chain connection between the monitors, one 5m DVI-D cable for main source connection and two 6 outlet surge suppressors. This bundle includes everything needed to install a 2×2 multi display system.
Features & Specifications
Local Dimming Function – Contrast Enhancement
By partially “dimming” the backlight, the local dimming function enhances the graphic contrast. Additionally, the power consumption is 30% less* when this function is on.
Tiling Compatibility with Frame Compensation
Combine up to 25 panels (5 wide x 5 high) to create a single large video wall. The frame compensation function adjusts the image to compensate for the panel bezels to create an accurate image across multiple screens.
Color Calibration for Multi-screen Applications (Service Option)
Utilizing Mitsubishi Electric’s original color calibration software, the white point, brightness and gamma curve can be adjusted to ensure matching images between adjacent panels.
Optional Front-access Wall Mount Bracket (BR-LM1KK)e
When used in combination with our original wall mount kit, LCD panels can be accessed from the front-side of the system, facilitating simple servicing of panels either from the front or rear (possible in both landscape and portrait orientations).
Picture-in-Picture
Show two active input displays simultaneously.
Closed Caption
Support closed caption for hearing impaired needs.
