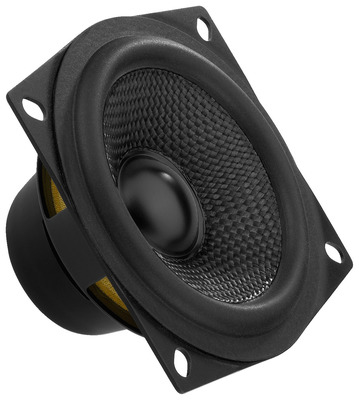

Monacor SPH-30X/4SW

Monacor SPH-30X/4SW

MPN: 10.4180
发送方式:
交货来源:
德国
更新价格... 📣 询问价格 Не поставляется
运输成本:
От

凡购买和价格 (Advertising *)

顶部
в наличии
* Alle Preise inkl. der jeweils geltenden gesetzlichen Mehrwertsteuer, ggfs. zzgl. Versandkosten. Alle Angaben ohne Gewähr. Preisänderungen sind in der Zwischenzeit möglich.

技术特点

顶部

产品特点

频率范围 3 - 17000 Hz
体积声顺(VAS) 1.06 L
Mechanical Q-factor (Qms) 9.35
Suspension compliance (Cms) 0.84 mm/N
Electrical Q-factor (Qes) 0.39
Effective piston area (Sd) 30 cm²
Voice coil inductance (Le) 0.5 mH
DC resistance (Re) 3.55 Ω
Total Q-factor (Qts) 0.42
移动质量(MMS) 2.63 g
力系数(BL) 3.91
峰值音乐输出功率(PMPO) 50 W
灵敏度 87 dB
阻抗 4 Ω
共振频率(Fs) 105 Hz
峰值偏移(XMAX) 2 mm

重量和尺寸

Driver size (W x H) 80.5 x 42 mm
High-quality hi-fi full range speakers,20 W, 4 Ω (/4) - Well dampened Kevlar cone of extra low weight
- Drive system with full air ventilation
- High-quality NEODYMIUM magnet system with double magnet
- Specially developed basket also for multiple arrangements
- High efficiency
- Small speakers for background PA applications or e.g. rear speakers in home cinema systems
- Suitable for applications from mid-high range speakers or full range midrange speakers in high-end hi-fi speaker systems to multiple arrangements in column speakers
