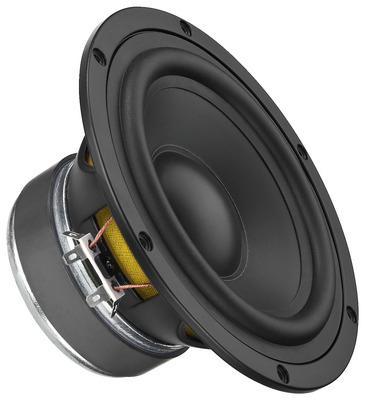

Monacor SPH-6M

Monacor SPH-6M

MPN: 10.5540
发送方式:
交货来源:
德国
更新价格... 📣 询问价格 Не поставляется
运输成本:
От

凡购买和价格 (Advertising *)

顶部
в наличии
* Alle Preise inkl. der jeweils geltenden gesetzlichen Mehrwertsteuer, ggfs. zzgl. Versandkosten. Alle Angaben ohne Gewähr. Preisänderungen sind in der Zwischenzeit möglich.

技术特点

顶部

产品特点

类型 Subwoofer speaker driver
峰值音乐输出功率(PMPO) 120 W
灵敏度 88 dB
阻抗 8 Ω
共振频率(Fs) 39 Hz
频率范围 39 - 3000 Hz
峰值偏移(XMAX) 4 mm
体积声顺(VAS) 17.6 L
Mechanical Q-factor (Qms) 2.26
Total Q-factor (Qts) 0.3
Suspension compliance (Cms) 0.78 mm/N
Electrical Q-factor (Qes) 0.35
Effective piston area (Sd) 127 cm²
Voice coil inductance (Le) 0.82 mH
DC resistance (Re) 6.33 Ω
移动质量(MMS) 20 g
力系数(BL) 9.68

重量和尺寸

Driver size (W x H) 180 x 92 mm
Hi-fi bass speaker, 60 W, 8 Ω - High-quality hi-fi bass speaker of long excursion
- Dampened low-resonance polypropylene cone
- Robust diecast aluminium basket of an elegant design with 6-hole screw connection
- Magnet system with drilled pole core and protruding rear pole plate
- Very well-suited for bass-reflex speaker systems

<b>Klang+Ton 01/2014</b>
"The 17 cm prolypropylene speaker provides a regular and very accurate signal reproduction."
(Together with DT-350NF in the Klang+Ton speaker building concept GT6)

<b>HOBBY HiFi 02/2012</b>
"Amazing bass speaker - neat workmanship, clever dimensioning. Creates an amazingly deep bass reproduction from a petite bookshelf speaker format (to 36 Hz)."
