其他功能
| 电磁辐射 |
CE: EN55022 A/EN 55024, FCC: FCC 15 BA |
| 数据链路协议 |
Ethernet, Fast Ethernet |
| 接口 |
RS-422/485, RJ45 |
认证标准
| 安全 |
UL: UL60950-1,CUL, TÜV: EN60950-1 |
性能
| 最大传输距离 |
40000 m |
| 波长 |
1310 nm |
另外
| 数据传输率（最大） |
0.9216 Mbit/s |
| 连接方式 |
Wired |
8-Port RS-422/485 Serial Device Server, 152 mA @ 100 VAC, 98 mA @ 240 VAC
Make up to 8 RS-232/422/485 Serial Devices Internet Ready
NPort 5600 Series provides a convenient and transparent way to establish an Ethernet connection that not only protects your current hardware investment, but also ensures future network expandability. Perform some simple configuration tasks, and you''ll be ready to network your existing serial devices. Moreover, NPort 5600 can transparently transmit data bi-directionally between the serial and Ethernet interfaces. By using NPort 5600, you can centralize serial device management and distribute management hosts at the same time.

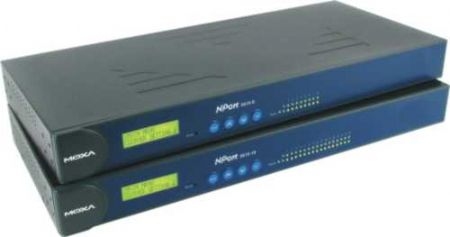

19-inch Rackmount Device Server
NPort 5600 has a professional cabinet design, with Tx/Rx LEDs for all ports on the front panel, and the 8/16 RJ45 connectors on the rear panel.This makes NPort 5600 suitable for standard 19-inch rack mounting, simplifying operation, maintenance, and administration.
Real COM/TTY Ports
After installing the real COM/tty driver that comes with NPort 5600, the serial ports on NPort 5600 are recognized as Real COM ports by the Windows operating system, or real tty ports by Linux environments. NPort provides both the basic transmit/receive data functions, as well as RTS, CTS, DTR, DSR, and DCD control signals.
Useful LED Indicators
The System LED, Serial Tx/Rx LEDs, and Ethernet LED on the connector help field engineers analyze field problems, and provide a simple way to ease monitoring tasks. NPort 5600's LEDs not only indicate current system and network status, but also assist the field engineer in monitoring the status of attached serial devices.
