处理器
处理器安装数量 |
1 |
处理器高速缓存 |
4 MB |
处理器光刻 |
65 nm |
散热设计功耗 (TDP) |
35 W |
处理器代号(codename) |
Merom |
结温 |
100 °C |
FSB奇偶校验 |
N |
总线频率 |
11 |
处理器运行模式 |
64-bit |
处理器插槽 |
Socket 478 |
步进 |
E1 |
核心的处理器数量 |
2 |
处理器频率 |
2.2 GHz |
总线类型 |
FSB |
处理器前端汇流总线 |
800 MHz |
处理器高速缓存类型 |
L2 |
Number of Processing Die Transistors |
291 M |
端口 & 界面
DVI端口 |
N |
RS‐232/422 端口 |
Y |
PS/2连接埠数量 |
1 |
麦克风/音频输入插孔 |
N |
VGA(D-SUB)端口数量 |
1 |
串口数量 |
2 |
性能
主板南桥 |
Intel ICH8M |
监视报警功能 |
Y |
图像
板载图形适配器 |
Y |
独立显卡类型 |
Not available |
板载图形适配器系列 |
Intel GMA |
处理器的特殊功能
执行禁止位 |
Y |
闲置状态 |
Y |
英特尔®可信执行技术 |
N |
英特尔®虚拟化技术(VT -x) |
Y |
处理器封装尺寸 |
35 mm |
Processor ARK ID |
29761 |
英特尔®64 |
Y |
可选用的嵌入式选项 |
Y |
英特尔®超线程技术 |
N |
英特尔®Turbo Boost技术 |
N |
英特尔® 增强暂停状态 |
Y |
增强型英特尔®SpeedStep动态节能技术 |
Y |
英特尔®基于需求开关 |
N |
软件
预先安装软件 |
Linux 2.6 |
操作系统结构 |
32-bit |
联网
以太网的数据传输率 |
10, 100, 1000 Mbit/s |
支持的协议 |
TCP, UDP, IPv4, SNMP v1/v2c/v3, ICMP, ARP, HTTP, CHAP, PAP, SSH 1.0/2.0, SSL, DHCP, NTP, NFS, Telnet, FTP, TFTP, PPP, PPPoE |
布线技术 |
10/100/1000Base-T(X) |
内存参数
内存时钟速度 |
667 MHz |
内存布局 |
1 x 1 GB |
内存插槽数量 |
1x SO-DIMM |
最大内部存储 |
2 GB |
内置存储器 |
1 GB |
内存类型 |
DDR2-SDRAM |
能量控制
电源输入电压 |
100 - 240 V |
电源输入频率 |
47 - 63 Hz |
电源 |
60 W |
另外
主板晶片 |
Intel GME965 Express |
以太网连接器 |
Y |
以太网路(RJ-45)连接接口数量 |
4 |
Processing die size |
143 mm² |

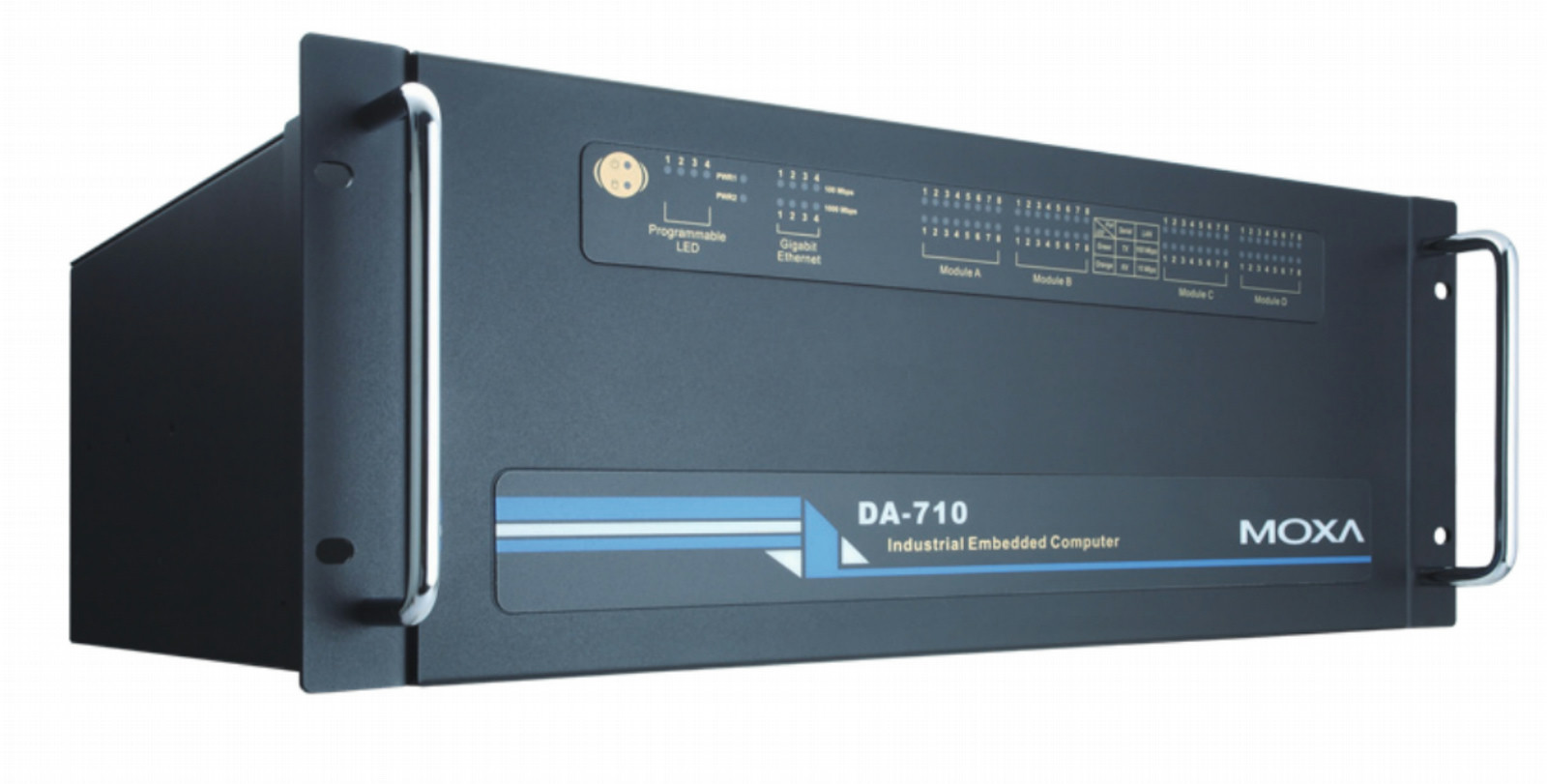

x86-based rackmount embedded computer with 2 RS-232 ports, 4 LANs, 4 peripheral expansion slots, 4 DIs, 4 DOs, VGA, CompactFlash, USB, Linux 2.6
The DA-710 computer is based on the Intel x86 processor, supports VGA, and comes with 4 Ethernet ports, 2 RS-232 serial ports, CompactFlash, and USB. The DA-710 comes in a standard 19-inch, 4U high form factor, making it an ideal platform for industrial applications.
The DA-710 comes with 4 PCI slots for inserting expansion modules. Moxa provides a variety of communication modules, including an 8-port RS-232/422/485 module, a 4-port 10/100 Mbps LAN module, an 8-port RS-422/485 module, an 8-port switch module, and a universal PCI expansion module. The friendly modular design gives users the advantage of being able to swap out modules quickly and easily.
The DA-710 runs Linux, or Windows Embedded Standard 2009 (pre-installed), providing a friendly environment for developing sophisticated application software. The great software support that Moxa provides makes the programmer’s job easier, and helps programmers develop bug-free code quickly and at a lower cost.
