其他功能
支持网络协议 |
ICMP, ARP, IPv4, TCP, UDP, DHCP, HTTP, SNMP V1, SMTP, TFTP, Auto IP, Telnet, BOOTP |
串口类型 |
TTL |
电流 |
0.157 A |
输入电压范围 |
3.3 - 5 V |
信号方向 |
Input/output |
32-bit ARM Core, 4 MB RAM, 2 MB Flash, 10/100 Mbps, TTL, 50 bps to 230.4 Kbps, 0 to 55°C
- Smallest embedded device server available—only 29 x 17 x 12.6 mm
- EZPower for 3.3 to 5 VDC system power input supported
- Extremely low power consumption
- Uses the MiiNe, Moxa’s second generation SoC
- Simple integration with NetEZ technology
- Operation versatility with Real COM/TCP/UDP/RFC2217/MCSC

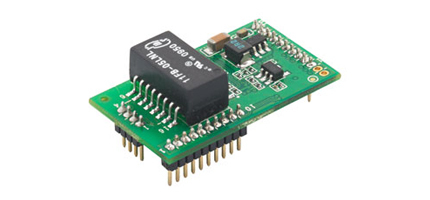

Moxa’s MiiNePort E2 series embedded device servers are designed for manufacturers who wanting add sophisticated network connectivity to their serial devices with minimal integration effort. The MiiNePort E2 is empowered by the MiiNe, Moxa’s second generation SoC, which supports 10/100 Mbps Ethernet, delivers a serial baudrate of up to 921.6 kbps, offers a versatile selection of ready-to-use operation modes, and requires a minimal amount of power. With Moxa’s innovative NetEZ technology, the MiiNePort E2 can convert any device with a standard serial interface to an Ethernet-enabled device. In addition, the MiiNePort E2 is the smallest embedded device server without an RJ45 connector, making it easy to fit into virtually any existing serial device.
