技术细节
| 隔离度 |
1.5 kV |
| 浪涌保护 |
2 kV |
| 以太网的数据传输率 |
10, 100 Mbit/s |
协议
| 支持网络协议 |
CMP, IP, TCP, UDP, DHCP, BOOTP, Telnet, DNS, HTTP, SMTP, SNTP, ARP, PPP, SLIP, RTelnet, RFC2217 |
NPort 5610-8, 1U (19''), 8-Port RS-232, 141mA/100 VAC, 93mA/240 VAC

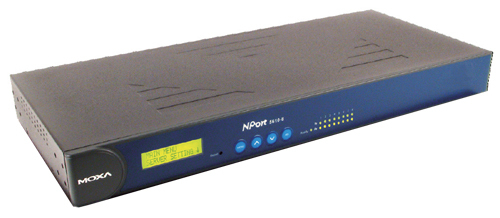

<b>NPort 5610 Rackmount</b>
NPort® 5610 rackmount device servers can conveniently and transparently connect up to sixteen serial devices to an Ethernet, allowing you to network your existing serial devices with only basic configuration. Data transmission between the serial and Ethernet interfaces is bi-directional. By using NPort® device servers, you not only protect your current hardware investment, but also allow for future network expansion. You can both centralize the management of your serial devices, and distribute management hosts over the network.
<b>Features and Benefits:</b>
- 8 serial ports supporting RS-232;
- Standard 19-inch rackmount size;
- 10/100M auto-sensing Ethernet;
- Built-in 15 KV ESD protection for all serial signals;
- Easy IP address configuration with LCD panel;
- Choice of configuration methods: Web console, Telnet console, and Windows utility;
- Versatile socket operation modes, including TCP Server, TCP Client, UDP, and Real COM;
- SNMP MIB-II for network management.
