天线
天线接口类型 |
SMA |
天线增益水平(最大值) |
1.5 dBi |
蜂窝接口
GPRS编码方案 |
CS4, CS3, CS2, CS1 |
SIM卡数量 |
1 |
GPRS多时隙级别 |
10 |
SIM卡接口 |
3 V |
EDGE多时隙级别 |
10 |
GSM频段的支持 |
1800, 1900, 900, 850 MHz |
支持的UMTS频段 |
2100, 1900, 850 MHz |
串行接口
静电放电(ESD)保护装置 |
15 kV |
浪涌保护 |
2 kV |
波特率 |
0.05 Kbit/s |
串口数量 |
1 |
技术细节
隔离度 |
1.5 kV |
数据网络 |
EDGE, 3G, HSDPA, GSM, GPRS |
管理功能
管理协议 |
SNMP MIB-II, SNMP Private MIB, SNMPv1/v2c/v3, DDNS, IP Report, Web/Telnet/Serial-Console/SSH |
以太网LAN特性
自动 MDI / MDI - X 检测功能 |
Y |
以太网的数据传输率 |
10, 100 Mbit/s |
联网
支持网络协议 |
ICMP, TCP/IP, UDP, DHCP, Telnet, DNS, HTTP, SMTP, HTTPS, SNTP, ARP, SSL, IPSec |

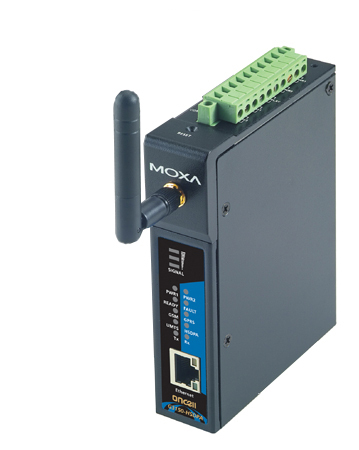

OnCell G3110-HSDPA, 1 x RS-232, GSM/GPRS/EDGE/UMTS/HSDPA, IP Gateway
<b>Industrial five-band GSM/GPRS/EDGE/UMTS/HSDPA IP gateways</b>
The OnCell G3100-HSDPA series of high-speed industrial-grade IP gateways are intelligent and fully-featured wireless communication platforms that connect your Ethernet and serial devices over a cellular TCP/IP network. The OnCell G3100-HSDPA series offers connectivity to all tri HSDPA/UMTS frequency bands and quad GSM/GPRS/EDGE frequency bands used in Europe and the United States, allowing seamless global roaming on the best available network. The OnCell
G3100-HSDPA comes with private IP management software and supports VPN for handling the IP address issue in cellular network structures. The OnCell G3100-HSDPA also comes with a built-in relay output that can be configured to indicate the priority of events when notifying or warning engineers in the field. Two digital inputs also allow you to connect basic I/O devices, and the OnCell G3100-HSDPA comes with redundant power inputs to assure non-stop operation.
<b>Features and Benefits:</b>
- Tri-band UMTS/HSDPA 850/1900/2100 MHz;
- Quad-band GSM/GPRS/EDGE 850/900/1800/1900 MHz;
- Connect to Ethernet and serial devices over an integrated VPN;
- Centralize private IP management software with OnCell Central Manager;
- Redundant DC power inputs;
- 2 digital inputs and 1 relay output.
