能量控制
| 输入电压 |
12 - 48 V |
| 耗电量 |
600 mA |
技术细节
| 串口数量 |
2 |
| 隔离度 |
1.5 kV |
| 以太网的数据传输率 |
10, 100 Mbit/s |
| 波特率 |
921.6 Kbit/s |
| 静电放电(ESD)保护装置 |
15 kV |
| 停止位 |
2, 1 |
设计
| 安全 |
UL 60950-1, CSA C22.2 No. 60950-1-03, EN 60950-1 |
GPRS, EDGE, 2x RS-232/422/485, 144 x 119 x 40 mm, 1kg, -10 to 60°C, Antenna Length: 85 mm

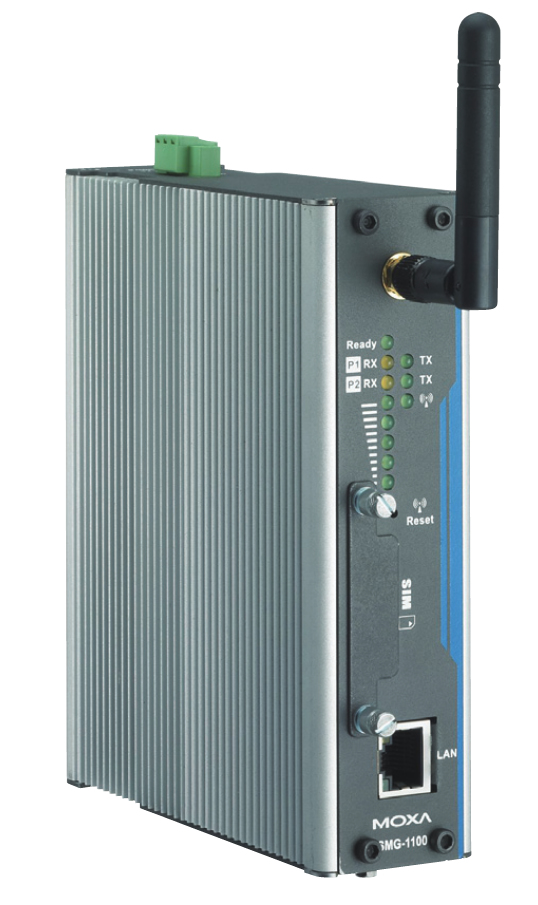

The SMG-1100 series features two software selectable RS-
232/422/485 ports, one Ethernet port, and quad-band GPRS/EDGE
900/1800/850/1900 MHz for cellular communication.
The SMG-1100 series provides a sophisticated wireless M2M solution
for distributed Modbus devices. The SMG-1100 networks Modbus
devices with Modbus RTU/ ASCII protocols can work well via GPRS/
EDGE or Ethernet to Modbus TCP, and each serial port can support
up to 31 serial slaves to IP network. Implemented with the protocol
conversion functionality, the SMG-1100 can serve both serial master
and slave and the built-in IPsec function guarantees that data
transmission is encrypted even in a wireless environment.
