产品特点
视频通道的数量 |
100 |
最低内存 |
2048 MB |
最低处理器 |
Intel Core 2 Quad QX6700 |
支持的摄像头类型 |
IP, CCTV |
PTZ控制(平移/倾斜/缩放) |
Y |
事件记录 |
Y |
最低要求的图形适配器 |
ATI Radeon 9200, nVIDIA GeForce GT-220 |
支持的显示器数量 |
3 |
IP CCTV central management software with 100-channel license
<b>Features and Benefits</b>
- Up to 500 channels in one system
- TV wall function supported via client-server connection
- H.264/MPEG4/MJPEG viewing with VPort series
- Access video-playback from MxNVR-IA8 / SoftNVR-IA
- Triple monitor display capability
- Emap function supported
- PTZ control function supported
- Supports remote web client access for live video and playback
- Supports joystick controller
<b>Introduction</b>

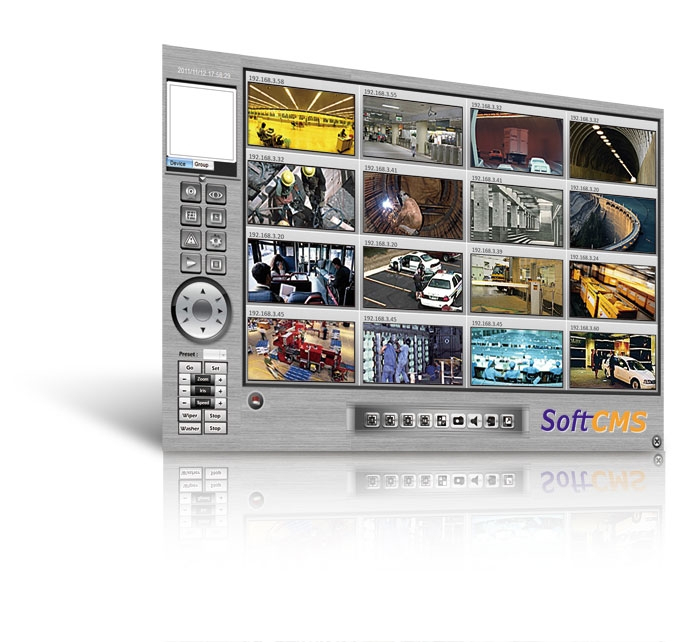

SoftCMS is a powerful central management software solution that manages large scale CCTV installations in a single interface. This software supports live video monitoring, video playback, emap, remote I/O trigger, and event management and is compatible with Moxa VPort series encoders, IP cameras, SoftNVR-IA, and MxNVR-IA8.
<b>System Structure</b>
- Flexible system design for centralized or distributed architecture
- 100, 200, or 500-channel licenses for different surveillance system scales
<b>Live View</b>
- Supports 1, 4, 9, 16 split and carousel mode display
- Support video streams: MJPEG, MPEG4 and H.264 (only support the VPort models, but not include VPort 2000 series and VPort 3310)
- Camera tree display and channel group setting for quick selection
- Complete remote PTZ control
- Auto-scan function to monitor large channel numbers at the same time
<b>Video Playback</b>
- Find desired video clip easily by device/time/date/event search
- Quick playback by double clicking on event search result
- Full screen display in playback interface
- Video wall view for critical live video monitoring
- Directly download remote video file in .avi file format
<b> Emap</b>
- Layered architecture, support unlimited map numbers
- Map tree display for easy map organization
- One-click access to camera live view
- Multi-angle camera icon to match real installation
- Alert camera icon for instant alarm notification
<b> Matrix TV wall</b>
- Unlimited physical monitors can be installed
- Display unlimited number of live channel views with guaranteed frame rate
- Use large TV-wall environment for live monitoring
<b> Operation Facilitator</b>
- Intuitive graphic user interface
- 2-way audio
- Remote I/O control
- Vital signs monitoring
- Area/location categorization
- Detailed system record to keep an eye on your operator
