图像
| 图形适配器内存类型 |
GDDR3 |
| 板载图形适配器 |
Y |
| 图形适配器系列 |
Intel |
内存参数
| 可支持内存时钟速度 |
1066, 1333 MHz |
| 支持的内存类型 |
DDR3-SDRAM |
| 内存插槽类型 |
SO-DIMM |
| 內存插槽数量 |
2 |
存储介质
| 可支持的存储驱动器数量 |
3.5 " |
| 可支持的存储驱动器数量 |
1 |
| 兼容性内存条 |
Memory Stick (MS), MMC, MS PRO, SD, SDHC, xD |
| 光驱类型 |
DVD Super Multi |
| 集成读卡器 |
Y |
端口 & 界面
| DVI端口 |
Y |
| 耳机输出端口 |
1 |
| S/PDIF输出接口 |
Y |
| 麦克风/音频输入插孔 |
Y |
| eSATA端口数量 |
1 |
| HDMI端口数量 |
1 |
| VGA（D-SUB）端口数量 |
1 |
另外
| 主板晶片 |
Intel G41 Express |
| 图形适配器 |
GMA X4500 |
| 以太网连接器 |
Y |
| 开/关切换钮 |
Y |
| 以太网路(RJ-45)连接接口数量 |
1 |
Intel LGA 775, Intel G41 + ICH7, Intel GMA X4500, 2 x SO-DIMM DDR3, 1 x 3.5" SATA, 1 x Slim DVD SuperMulti, Gigabit LAN, WLAN, 6-in-1 Card Reader, 120W AC, Black

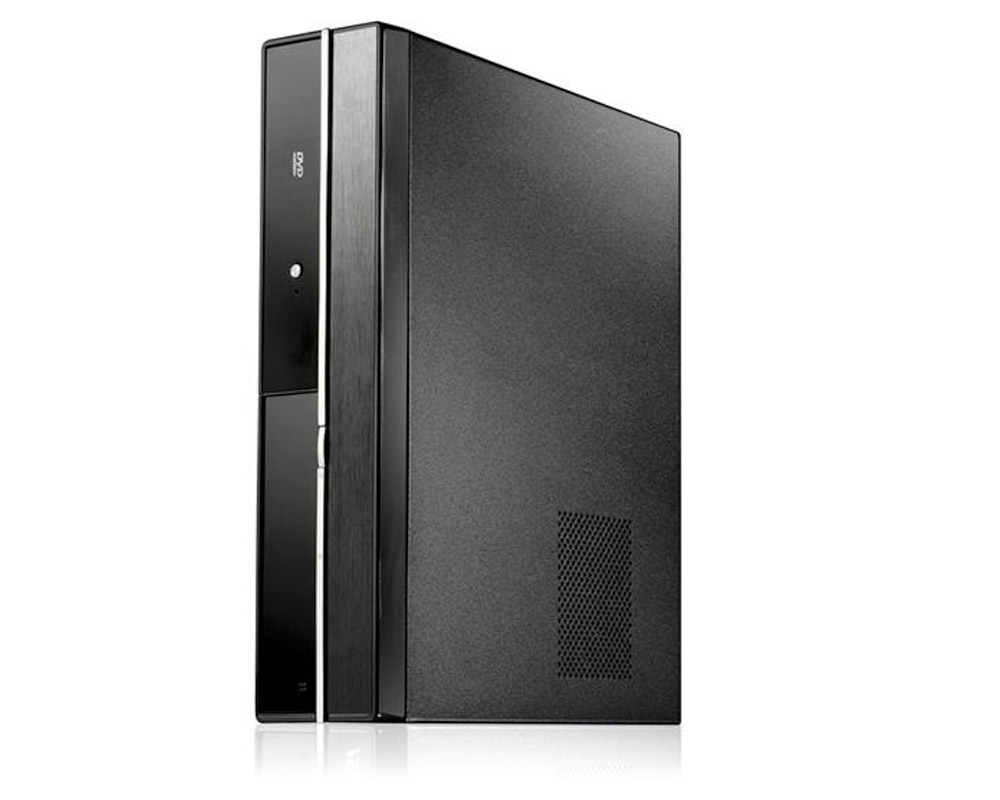

4.7-liter Desktop Barebone with SuperMulti DVDRW Drive included
- Socket LGA775 to Support Intel® Core2 Quad and Core2 Duo processors (TDP: Max. 65W)
- Intel G41+ICH7 chipset
- Intel GMA X4500 integrated graphics
- 2 x SO-DIMM slots for DDR3 1333/1066 MHz memory, up to 4GB
- 1 x Gigabit LAN
- 1 x Half-height PCIe mini card slot, WiFi antenna included
- 6 x USB2.0, 1 x E-SATA, 1 x 6-in-1 Card Reader, 8ch Audio
- 1 x VGA, 1 x DVI and 1 x HDMI
- 1 x 3.5" HDD drive bay and 1 x Slim SuperMulti DVDRW drive
- Space saving, less then 5 liters
- Alternative of vertical stand or horizontal laying
Environmentally-friendly design
6681-001BUS is certified by Energy Star in the US and also compliant with the requirements of the new European Union EuP (Energy using Product) environmental directive.
Comprehensive audiovisual and entertainment functions
6681-001BUS comes with the HDMI port to make it possible to connect to any full HD big screen for enjoying the crystal clear display quality. The Barebone unit also supports 7.1ch HD audio and SPDIF (optical audio) to let you have the fabulous sound experience at the same time.
