性能
| 主板元件 |
Micro ATX |
| 音频系统 |
Realtek ALC888S |
背板输出端口
| 串口数量 |
1 |
| PS/2连接埠数量 |
2 |
| 耳机输出端口 |
1 |
| 麦克风/音频输入插孔 |
Y |
| VGA(D-SUB)端口数量 |
1 |
内置输入/输出系统
| USB 2.0接口 |
2 |
| S/PDIF输出端口 |
Y |
| 串列ATA连接器数量 |
4 |
| TPM(可信任安全平台模组)接口 |
Y |
| 软盘驱动器接口 |
Y |
| CD/AUX音频输入 |
Y |
| 机箱防盗接口 |
Y |
| 前面板音频接头 |
Y |
扩展槽
| PCI Express x16 插槽 |
1 |
| PCI Express × 1插槽 |
1 |
另外
| 主板晶片 |
AMD 740G |
| 以太网路(RJ-45)连接接口数量 |
1 |

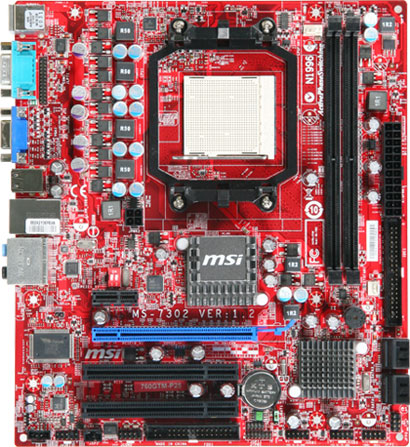

740GTM-P25 - Socket AM2+, Phenom, AMD® 740G+SB710, DDR2 667/800/1066, M-ATX
- Faster and Flexible and instant
- If BIOS crash, it still can boot from USB Drive
- Update BIOS from USB Drive by M-Flash Fucntion
- Longer lifespan than electrolytic capacitors
- Endurable to operate under higher frequency & temperature
- Provide Stable Power for CPU
- Help end-users upgrade CPU FSB directly
- Buy an essential CPU but want to reach higher performance
- Skip the complicated BIOS OC setting and enjoy the higher level CPU performance
The MSI Live Update online is designed to automatically download and update the BIOS and driver when there’s a new version online. It helps reduce the risk of getting the wrong file and minimize the trouble of searching the files from MSI website.
Live Update 3 is a single utility software that automatically checks BIOS, driver and utility updates and installs for you , which can save your time for searching and lower the risk while updating.
AMD Cool'n'Quiet™ technology that based on famous PowerNow™ technology just brings fresh air to hot-fighting desktop platform. Cool'n'Quiet technology can automatically adjust processor ratio to throttle CPU speed with four modes.
