内置输入/输出系统
USB 2.0接口 |
2 |
串列ATA连接器数量 |
6 |
ATX电源接头 |
Y |
并行ATA连接器 |
1 |
前面板音频接头 |
Y |
机箱防盗接口 |
Y |
CPU风扇接口 |
Y |
并行接口 |
Y |
SATA III连接器数量 |
6 |
机箱风扇接头数量 |
1 |
USB 3.0(第 1代3.1)连接器 |
1 |
TPM(可信任安全平台模组)接口 |
Y |
图像
DirectX版本 |
11.1 |
最大图形显示内存 |
2048 MB |
背板输出端口
USB 3.0(第 1代3.1)Type-A 端口数量 |
4 |
HDMI端口数量 |
1 |
VGA(D-SUB)端口数量 |
1 |
PS/2连接埠数量 |
2 |
DVI-D接口数量 |
1 |
内存参数
内存插槽类型 |
DIMM |
内存通道支持 |
Dual |
支持的内存类型 |
DDR3-SDRAM |
內存插槽数量 |
4 |
最大内部存储 |
64 GB |
无错误检测和更正 |
Y |
另外
以太网连接器 |
Y |
主板晶片 |
AMD A78 |
以太网路(RJ-45)连接接口数量 |
1 |

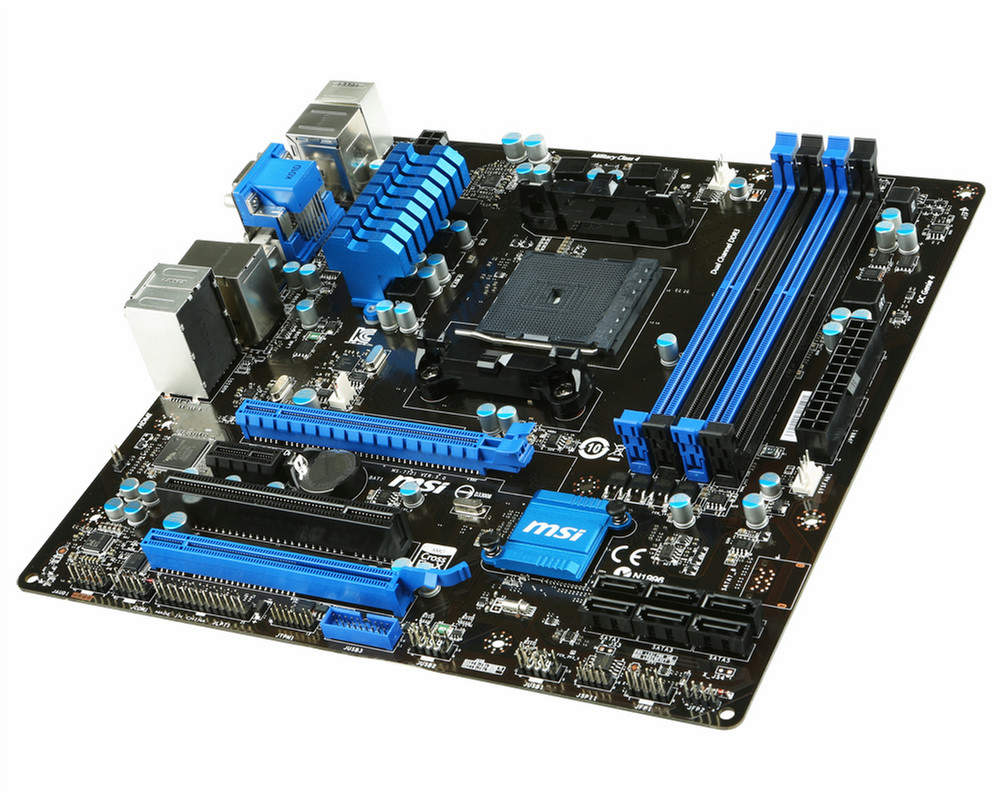

FM2+, AMD A78, USB 3.0, 4 x DDR3, M-ATX
<b>Military Class 4</b>
MSI's new Military Class 4 components support you while you are questing, racing, battling and shooting your way to the top. MSI's Military Class 4 components deliver record-breaking stability when you need to keep cool in the heat of battle. The new standard in stability built on a proven technology of high quality components.
<b>Military Class Essentials</b>
The core of Military Class 4 is based on the essentials which increase your stability in the worst conditions. The humidity protection and high temperature protection ensure your system surviving each environment, no matter how harsh. The new structure of the PCB limits EMI radiation. On top of that all the connectors have ESD protection in order to prevent short circuit.
<b>OC Genie 4</b>
OC Genie 4 supercharges your speed experience! When used, OC Genie 4 accelerates your entire system and puts it into overdrive! Tuned by the professional overclockers, OC Genie 4 hands you record-breaking performance on a silver plate.
<b>Click BIOS 4</b>
The MSI Click BIOS 4 is the latest UEFI BIOS with optimizations for Windows 8. Not only reacting faster and running smoother, it also has better mouse support. This is all comes with many cool features, such as Hardware Monitor, Board Explorer, and OC Profile Preview.
<b>Benefits:</b>
- Optimizations for Latest Windows
- Hardware Monitor
- Board Explorer
- OC Profile Preview
<b>AMD Dual Graphics</b>
- The GPU's computing power can be enhanced through the collaborative computing of video cards and APU
- Support AMD Radeon HD series graphics card
- MSI completely exerts the AMD Dual Graphics technology to the best
<b>World's 1st PCI Express Gen 3 motherboard brand</b>
With ultra-high 32GB/s transfer bandwidth, PCI Express Gen 3 provides a 2X faster transfer rate than the previous generation, this delivers amazing capabilities for true next generation extreme gaming.
<b>Benefits:</b>
- 2X bandwidth
- Increased efficiency and compatibility
- Extreme performance for current and next gen PCI Express cards
<b>Super Charger</b>
Mobile consumer appliances are getting more and more attention in current day fast moving life style, with smart phones and tablets almost becoming a fashion accessory. However, many ordinary personal computers cannot charge some of these devices, making it difficult to stay connected. The MSI Super Charger is a Windows resident program capable of revising the power supply mode of your USB port to become more powerful. Once your phone or tablet is connected to your USB port, the Super Charger sends a signal to initiate its charging circuit, making it a really smart and convenient charging solution for mobile computing needs.
<b>USB 3.0</b>
Compared to the 480Mbps provided by traditional USB 2.0, the all-new USB 3.0's 5Gb/s offers 10 times the transfer bandwidth, so transferring a Blu-ray movie takes less than one minute.
<b>Features</b>
- 10X Faster Than USB 2.0
- Up to 5Gb/s Data Transfer Bandwidth
- Boost Transfer Rate Between Your PC and External Storage Devices
<b>SATA 6Gb/s</b>
SATA 6Gb/s provides double the bandwidth of traditional SATA 3Gb/s, and increases the data transfer rate between your motherboard and internal storage devices, such as 7200RPM HDDs, 10000RPM HDDs and SSDs. It's also the current trend for upcoming high-speed internal storage devices to break the existing bottleneck of a PC's performance.
<b>Features</b>
- 2X Faster Than SATA 3Gb/s
- Up to 6Gb/s Data Transfer Bandwidth
- Unleash True Performance of New HDDs/SSDs
<b>3 Display Outputs</b>
When combined with today's processors featuring advanced integrated graphics, MSI motherboards equipped with 3 video outputs support 4K monitors and triple display configurations for more efficiency and flexibility of the desktop layout or immersive display of movies and games.
<b>Fast Boot</b>
No more waiting for entering O/S! MSI Fast Boot helps to make motherboards boot lightning fast. MSI also adds the GO2BIOS button with-in. Simply click it to reset your PC and then go straight to the system BIOS.
<b>Live Update 5</b>
MSI Live Update 5 is a powerful and useful application for updating the latest BIOS and Drivers, saving your time and lowering the risk of updating. End-users can install and run the Live Update 5 software on their computers with the companion CD or downloading the app from the MSI website.
<b>Features</b>
- Automatically Detect the BIOS/Driver/VGA/Utility Update
- Support Microsoft Windows XP/Vista/7 32/64bit
<b>M-Flash</b>
Compared to common motherboards which need extra BIOS chips, MSI's M-Flash has a double advantage which doesn't need extra components and secondly, all your BIOS data will be saved in the USB drive. The stored data does not only have backup and upgrade function, moreover, it can also be seen as a portable BIOS chip which is actually able to boot up your PC.
<b>Features</b>
- Backup/Restore Your BIOS to/from Any USB Flash Disk
- Avoid Unnecessary Repair Due to Accident Failures During The Upgrading Process
- Earn more BIOS Lifespan by Reducing Unnecessary Rewriting Process
<b>USB Safeguard</b>
USB Safeguard can prevent motherboards and USB devices from being damaged by short-circuit and ESD (Electro-Static Discharge) with Anti-ESD chips built-into the motherboards. Additionally, the safeguard can protect against such dangers multiple times, and greatly improves product lifespan.
<b>Features</b>
- All MSI motherboards use USB Safeguard’s anti-ESD chip for thorough protection against ESD damage
- USB Safeguard is protected against a short circuit and/or ESD without the need for a fuse. It also supports stand-by power supply
<b>Winki 3</b>
Winki 3 is a free Linux-based O/S which is based on the Linux core. With an ultra-fast booting speed and a multi-language interface, the built-in Winki 3 provides an easy-to-use internet environment that includes the most popular functions such as internet surfing, web mail, instant messaging, picture browsing, and more. It's the most practical way to be online in the shortest time.
<b>Features</b>
- User friendly & totally free applications
- Power on to run applications in 25 seconds
- Multi-language interface support
<b>Cool'n'Quiet</b>
AMD Cool'n'Quiet Technology reduces heat and noise so you can experience amazing performance without distraction. Combined with core enhancements, included in the AMD processors, that can improve overall power savings, deliver better multitasking and energy efficiency. Cool'n'Quiet technology can automatically adjust processor ratio to throttle CPU speed with four modes.
<b>Features</b>
- Independent Dynamic Core Technology
- Dual Dynamic Power Management
- AMD CoolCore Technology
- AMD Wideband Frequency Control
- Multi-Point Thermal Control
