其他功能
| 布线技术 |
10-100-1000Base(TX) |
| 包括显示器 |
Y |
| 处理器安装数量 |
1 |
| 网路唤醒功能 |
Y |
| PCI Express × 1插槽 |
2 |
| 软盘驱动器的安装 |
N |
| 平台 |
PC |
| 遵守工业标准 |
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
| 电源 |
120 W |
| 网路功能 |
Gigabit Ethernet |
| 图形适配器系列 |
NVIDIA |
| 扬声器 |
2 |
| 最大图形显示内存 |
256 MB |
端口 & 界面
| DVI端口 |
N |
| HDMI端口数量 |
1 |
| VGA（D-SUB）端口数量 |
1 |
| DC-IN插口 |
Y |
| 耳机输出端口 |
1 |
| 麦克风/音频输入插孔 |
Y |
| eSATA端口数量 |
1 |
图像
| 板载图形适配器 |
Y |
| 独立显卡类型 |
NVIDIA GeForce 9300 |
联网
| 无线局域网连接 |
Y |
| 以太网的数据传输率 |
10, 100, 1000 Mbit/s |
处理器
| 处理器频率 |
2.1 GHz |
| 处理器高速缓存类型 |
L2 |
| 核心的处理器数量 |
2 |
| 处理器前端汇流总线 |
800 MHz |
| 处理器高速缓存 |
1 MB |
存储介质
| 硬盘接口 |
Serial ATA II |
| 硬盘转速 |
5400 RPM |
| 安装的硬盘驱动器的数量 |
1 |
| 集成读卡器 |
Y |
| 总存储容量 |
320 GB |
内存参数
| 内存时钟速度 |
800 MHz |
| 内存类型 |
DDR2-SDRAM |
| 内置存储器 |
3 GB |
| 最大内部存储 |
4 GB |
另外
| 以太网连接器 |
Y |
| 以太网路(RJ-45)连接接口数量 |
1 |
AE2020-031UK, Intel Pentium T4300 (1M Cache, 2.10 GHz, 800 MHz FSB), 3GB DDR2, 320GB HDD, NVIDIA GeForce 9300 256MB, 50.8 cm (20 ") WXGA 1600 x 900 px, DVD-RW, Gigabit Ethernet, 802.11b/g/n, 6 x USB 2.0, HDMI, E-SATA, 120W, 1.3MP, Windows 7 Home Premium
In Touch with Your Happy World!

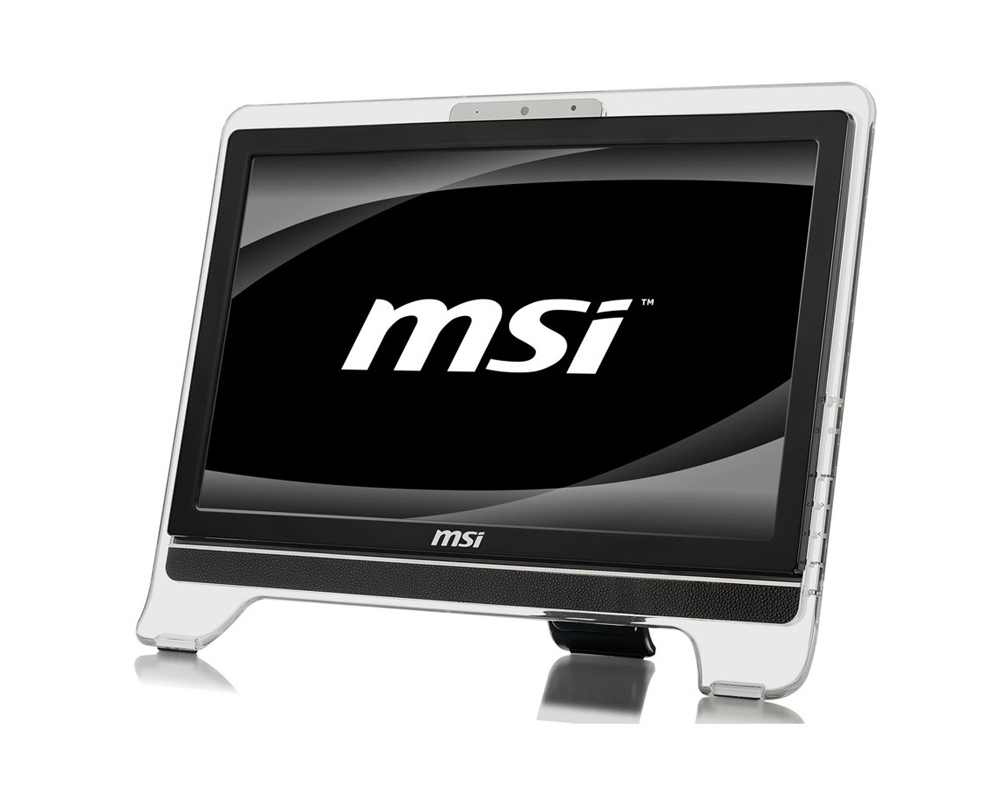

The Wind Top AE2020, MSI's latest generation multi-touch all-in-one PC, features Microsoft's newest generation operating system, Windows 7 and the latest NVIDIA ION graphics card technology. Its leather inlay design creates a classic and sleek exterior housing a multi-touch screen, allowing for a more hands-on and fun multimedia experience.
Creating a New Era of Distinctive Glamour in Computing
Multi-touch, 16:9 widescreen display.
The Wind Top AE2020 comes with a 20” 16:9 aspect ratio widescreen theater display and leads the industry in multi-touch displays, creating a whole new computing experience that’s even more responsive and unhindered.
Classic Leather Inlay Design
A uni-body exterior construction with stylish molding and inlaid leather design reveals a distinctive taste, which facilitates the shift from a rigid PC to a fashionable accessory at your side; it makes for an elegant and exceptional addition, in both the work place and at home.
Spectacular Audio & Video Performance.
The Unparalleled Power of the NVIDIA ION Platform
NVIDIA ION delivers up to 5x faster graphics performance than integrated graphics, to deliver full HD video (including 1080p), support for many popular PC games, and accelerated media conversion and video enhancement.
SRS High-end Surround Sound Audio
In any kind of listening environment, SRS Premium Sound® provides theater level clarity. SRS TruSurround HD® needs only two speakers to provide diverse and abundant aural experiences during audio, video, and gaming applications.
Supports HDMI Video & Image Inputs
High resolution HDMI video & image inputs let's you use the AE2020's widescreen display to play brilliant video & audio anytime.
High Performance, Power-Sipping, and Ultra Quiet.
Exclusive "MSI Wind Touch 3D UI" Multi-touch Interface
MSI's exclusive Wind Touch 3D User Interface (UI) and software includes the four major functions "Work", "Play”, "Tools", and "Internet" that integrate commonly used application software and MSI's exclusively developed, diverse software.
Intel Pentium T4500 Processor
The AE2020 is powered by the newest Intel Pentium T4300 / T4500 (1M Cache, 2.1/2.3GHz, 800 MHz FSB) high performance Dual-Core processor. Capable of shocking performance at full speed, the latest heat dissipating technology allows this processor to go a step further in lowering power consumption and increasing temperature reduction.
Enhanced Audio & Video for Unlimited Enjoyment.
The Latest External eSATA Port
The AE2020 supports the newest generation data transfer speeds of up to 3Gb/s from external connections via the eSATA port for even better performance. You'll be able to easily use external devices to back up precious images, video, and other kinds of meaningful data.
The Most Inclusive Expanded Interface
The AE2020 delivers robust application interfaces, including support for a 6-in-1 card reader and up to 6 USB 2.0 connection ports to AE2020 to external devices. The DVD Super Multi not only easily plays DVDs; it’s also capable of easily burning important data for backup storage.
