联网
| 无线局域网连接 |
Y |
| 局域网控制器 |
Realtek RTL8111H |
内存参数
| 可支持内存时钟速度 |
2133 MHz |
| 支持的内存类型 |
DDR4-SDRAM |
| 内存插槽类型 |
SO-DIMM |
| 最大内部存储 |
32 GB |
存储介质
| 可支持的存储驱动器数量 |
2.5 " |
| 可支持的存储驱动器数量 |
1 |
| 支持的存储驱动器类型 |
HDD, SSD |
处理器
| 处理器加速频率 |
3.10 GHz |
| 处理器光刻 |
14 nm |
| 散热设计功耗 (TDP) |
15 W |
| 三级高速缓存 |
3 MB |
| 核心的处理器数量 |
2 |
| 内置处理器 |
Y |
| 处理器频率 |
2.50 GHz |
处理器的特殊功能
| 英特尔® Flex内存访问 |
Y |
| 执行禁止位 |
Y |
| 闲置状态 |
Y |
| 热监测技术 |
Y |
| 英特尔®可信执行技术 |
N |
| 英特尔®中小企业通锐软件(SBA) |
Y |
| 英特尔®稳定映像平台计划 (SIPP) |
N |
| 英特尔®快速同步视频技术 |
Y |
| 英特尔® 内线™ |
Y |
| 英特尔®64 |
Y |
| 英特尔® 清晰视频技术 |
Y |
| 英特尔®智能响应技术 |
Y |
| 可选用的嵌入式选项 |
N |
| 英特尔®直接输入/输出硬件辅助虚拟化技术 (Intel® VT-d) |
Y |
| 英特尔®超线程技术 |
Y |
| 英特尔®Turbo Boost技术 |
2.0 |
| 英特尔®安全密钥 |
Y |
| 英特尔® 我的WiFi技术 |
Y |
| 英特尔®vPro™ 技术 |
N |
| 英特尔®VT-x的扩展页表（EPT） |
Y |
| 增强型英特尔®SpeedStep动态节能技术 |
Y |
| 英特尔®TSX-NIi |
N |
| 英特尔® OS Guard 操作系统保护 |
Y |
| 英特尔®无线显示(WiDi)技术 |
Y |
| 英特尔®清晰视频高清技术 |
Y |
端口 & 界面
| USB 3.0（第 1代3.1）Type-C 端口数量 |
1 |
| 耳机输出端口 |
1 |
| 麦克风/音频输入插孔 |
Y |
| USB 3.0（第 1代3.1）Type-A 端口数量 |
3 |
| HDMI端口数量 |
1 |
| DC-IN插口 |
Y |
设计
| 线缆锁插槽 |
Y |
| 笔记本钢缆锁插槽类型 |
Kensington |
能量控制
| 电源 |
65 W |
| 电源类型 |
External AC adapter |
另外
| InTru™3D技术 |
Y |
| 主板晶片 |
Intel H110 |
| Mini DisplayPort的数量 |
1 |
| 图形适配器 |
HD Graphics 620 |
| 以太网连接器 |
Y |
| 开/关切换钮 |
Y |
| 英特尔®AES新指令 |
Y |
| 包括 AC 适配器 |
Y |
| 以太网路(RJ-45)连接接口数量 |
1 |
Intel Core i5-7200U 2.5GHz, 4GB DDR4 2133HMz, 128GB SSD M.2, Intel HD Graphics 620, 3 x USB 3.1, 1 x USB 3.1 Type-C, HDMI, Mini DisplayPort, 802.11ac, Gigabit Ethernet, Kensington Lock, 65W
SMART DESIGN & NEAT COLORS

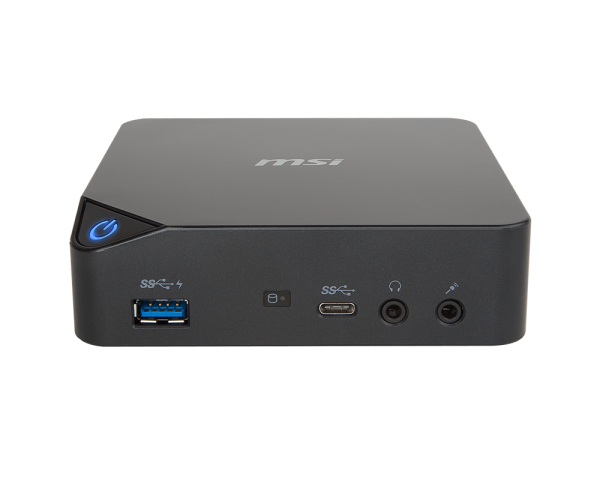

With curved edges, a smooth surface, a subtle ventilation frame and conveniently positioned I/O ports, the MSI Cubi 2 is not only the smallest, but also the smartest in its kind.
IDEAL FOR COUNTLESS APPLICATIONS
The MSI Cubi 2 is a small and powerful mini-desktop. It is suited to serve as HTPC at home, all-around media PC at home, at the office or for any commercial project.
HAND PALM-SIZED PC
Smaller than a lunchbox and less volume than a large soda can, MSI Cubi 2 is the smallest mini PC in its kind. With a 0.45 liter case that still provides all the elements of a desktop-worthy PC. With a sleek design, Cubi 2 is not just only a mini PC but fits with ease in any Livingroom.
USB GEN 1 TYPE-C WITH REVERSIBLE DESIGN
Get all the performance benefits from USB 3.1 Gen1 combined with the convenience of the USB Type-C connector. This reversible connector allows for effortless connecting of USB devices.
EASILY EXTEND YOUR STORAGE
Based on a modular design, the MSI Cubi 2 offers the possibility to install an additional 2.5” HDD for super high capacity data storage. Users can easily replace the bottom cover with an extended module, providing more space for those who desire more storage. With a built-in M.2 solid state drive and an extra 2.5” SSD or HDD, users can enjoy high-speed data processing and a big storage capacity at the same time.
TWO-BALL FAN HEATSINK
Compared to the regular sleeve-bearing fans, Cubi 2 choose a Two-ball Fan Heatsink to deliver ultra-durable and longer CPU protection.
HAPPINESS ALL AROUND
MSI® Cubi 2 supports HD and 4K (3840 x 2160 @ 60Hz) ultra-high-definition content, to serve as an HTPC that helps to change your living room in a home theater where you can enjoy the best display quality.
DO MORE WORK SIMULTANEOUSLY
Are you watching a lot of webpages and applications on a small monitor? With the HDMI and DP ports,MSI Cubi 2 can support dual monitors, you can do and view more.
