性能
| 主板元件 |
Micro ATX |
| 主板芯片组系列 |
Intel |
| 音频系统 |
Realtek ALC662 |
| 组件应用 |
PC |
| 冷却方式 |
Passive |
内存参数
| 可支持内存时钟速度 |
667, 800, 1066, 1333 MHz |
| 支持的内存类型 |
DDR2-SDRAM, DDR3-SDRAM |
| 内存通道支持 |
Dual |
| 内存插槽类型 |
DIMM |
| 支持的内存模块容量 |
4GB |
| 內存插槽数量 |
4 |
| 最大内部存储 |
8 GB |
背板输出端口
| 并口数量 |
1 |
| 串口数量 |
1 |
| PS/2连接埠数量 |
2 |
| 耳机输出端口 |
1 |
| 麦克风/音频输入插孔 |
Y |
| VGA（D-SUB）端口数量 |
1 |
内置输入/输出系统
| USB 2.0接口 |
2 |
| S/PDIF输出端口 |
Y |
| 并行ATA连接器 |
1 |
| ATX电源接头 |
Y |
| TPM（可信任安全平台模组）接口 |
Y |
| SATA II连接器数量 |
4 |
| CPU风扇接口 |
Y |
| 机箱防盗接口 |
Y |
| 机箱风扇接头数量 |
2 |
图像
| DirectX版本 |
10.0 |
| 最大图形显示内存 |
1740 MB |
| 板载图形适配器 |
Y |
| 图形适配器系列 |
Intel |
| 分立图形支持 |
Y |
扩展槽
| PCI 插槽 |
1 |
| PCI Express x16 插槽 |
1 |
| PCI Express × 1插槽 |
1 |
处理器
| 支持处理器前端总线 |
800, 1066, 1333 MHz |
| 处理器热功耗（最大） |
95 W |
另外
| 主板晶片 |
Intel G41 |
| 图形适配器 |
GMA X4500 |
| 以太网连接器 |
Y |
| 以太网路(RJ-45)连接接口数量 |
1 |

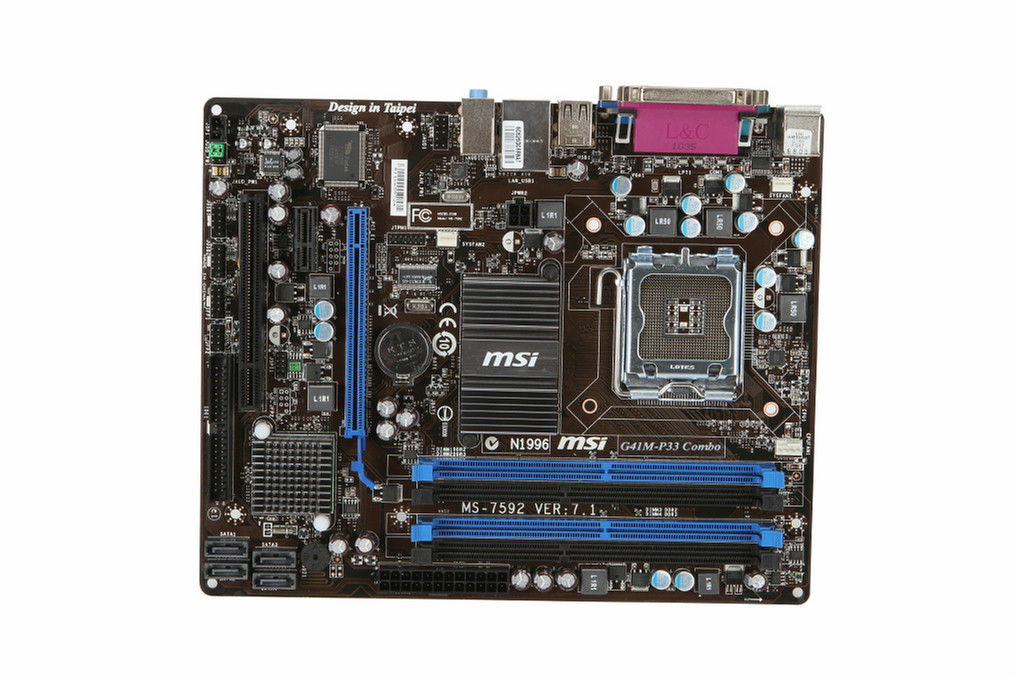

G41M-P33 Combo, LGA775, G41, ICH7, 2x DDR2, 2x DDR3, Realtek ALC662, Fast Ethernet, USB 2.0, IDE, SATAII, Micro-ATX
- Supports FSB 800/1066/1333 MHz
- Supports DDR2 & DDR3 DRAM
- 4 SATAII ports and 4 rear USB 2.0 ports
- 5.1 channel audio output
Super Charger
Mobile consumer appliances are getting more and more attention in current day fast moving life style, with smart phones and tablets almost becoming a fashion accessory. However, many ordinary personal computers cannot charge some of these devices, making it difficult to stay connected. The MSI Super Charger is a Windows resident program capable of revising the power supply mode of your USB port to become more powerful. Once your phone or tablet is connected to your USB port, the Super Charger sends a signal to initiate its charging circuit, making it a really smart and convenient charging solution for mobile computing needs.
Live Update 5
MSI Live Update 5 is a powerful and useful application for updating the latest BIOS and Drivers, saving you time and lowers the risk of updating. End-users can install and run the Live Update 5 software on their computers with the companion CD or downloading the app from the MSI website.
Features
- Automatically Detect the BIOS/Driver/VGA/Utility Update
- Support Microsoft Windows XP/Vista/7 32/64bit
M-Flash
Compared to common motherboard which need extra BIOS chips, MSI’s M-Flash has a double advantage which doesn’t need extra components and secondly, all your BIOS data will be saved in the USB drive. The stored data does not only have backup and upgrade function, moreover it can also be seen as a portable BIOS chip which is actually able to boot up your PC.
Features
- Backup/Restore Your BIOS to/from Any USB Flash Disk
- Avoid Unnecessary Repair Due to Accident Failures During The Upgrading Process
- Earn more BIOS Lifespan by Reducing Unnecessary Rewriting Process
Solid Capacitors on PWM
Capacitors are the most important component for electronic product’s power supply. The quality of the capacitors can impact the stability of the entire system and risk of product failure. Currently there are two types of capacitors, electrolytic capacitors and solid capacitors. Compared to electrolytic capacitors, solid capacitors have a longer lifespan, and provide a more stable power under high temperatures. More importantly, solid capacitors do not have any liquid materials inside, and thus will not suffer a leak which would infringe upon the product’s stability. With such benefits is it no wonder that solid capacitors are very important for product quality’s improvement,
