性能
| 主板元件 |
Micro ATX |
| 主板芯片组系列 |
Intel |
| 英特尔® 极限内存认证标准 （Intel® XMP) |
Y |
| 音频系统 |
Realtek ALC887 |
| 组件应用 |
PC |
内存参数
| 可支持内存时钟速度 |
2133 MHz |
| 无错误检测和更正 |
Y |
| 错误更正代码 |
Y |
| 支持的内存类型 |
DDR4-SDRAM |
| 内存通道支持 |
Dual |
| 内存插槽类型 |
DIMM |
| 內存插槽数量 |
4 |
| 最大内部存储 |
64 GB |
基本輸出輸入系統/BIOS
| 基本输入输出系统类型 |
UEFI |
| 清除CMOS跳线 |
Y |
内置输入/输出系统
| USB 2.0接口 |
2 |
| 串列ATA连接器数量 |
6 |
| ATX电源接头 |
Y |
| TPM（可信任安全平台模组）接口 |
Y |
| USB 3.0（第 1代3.1）连接器 |
1 |
| SATA III连接器数量 |
6 |
| 周边（莫仕）电 源连接器（4针） |
1 |
| CPU风扇接口 |
Y |
| 机箱防盗接口 |
Y |
| 机箱风扇接头数量 |
1 |
| 前面板音频接头 |
Y |
| 前面板接头 |
Y |
| 12V 电源接头 |
Y |
背板输出端口
| DVI-D接口数量 |
1 |
| PS/2连接埠数量 |
2 |
| 耳机输出端口 |
1 |
| 麦克风/音频输入插孔 |
Y |
| USB 3.0（第 1代3.1）Type-A 端口数量 |
4 |
| HDMI端口数量 |
1 |
| VGA（D-SUB）端口数量 |
1 |
扩展槽
| PCI Express X16（Gen 3.x）插槽 |
1 |
| PCI Express x1（Gen 3.x）插槽 |
2 |
处理器
| 英特尔®酷睿™ i3/ i5 / i7 系列 |
i3-6xxx, i5-6xxx, i7-6xxx |
另外
| 主板晶片 |
Intel H170 |
| 以太网连接器 |
Y |
| 以太网路(RJ-45)连接接口数量 |
1 |

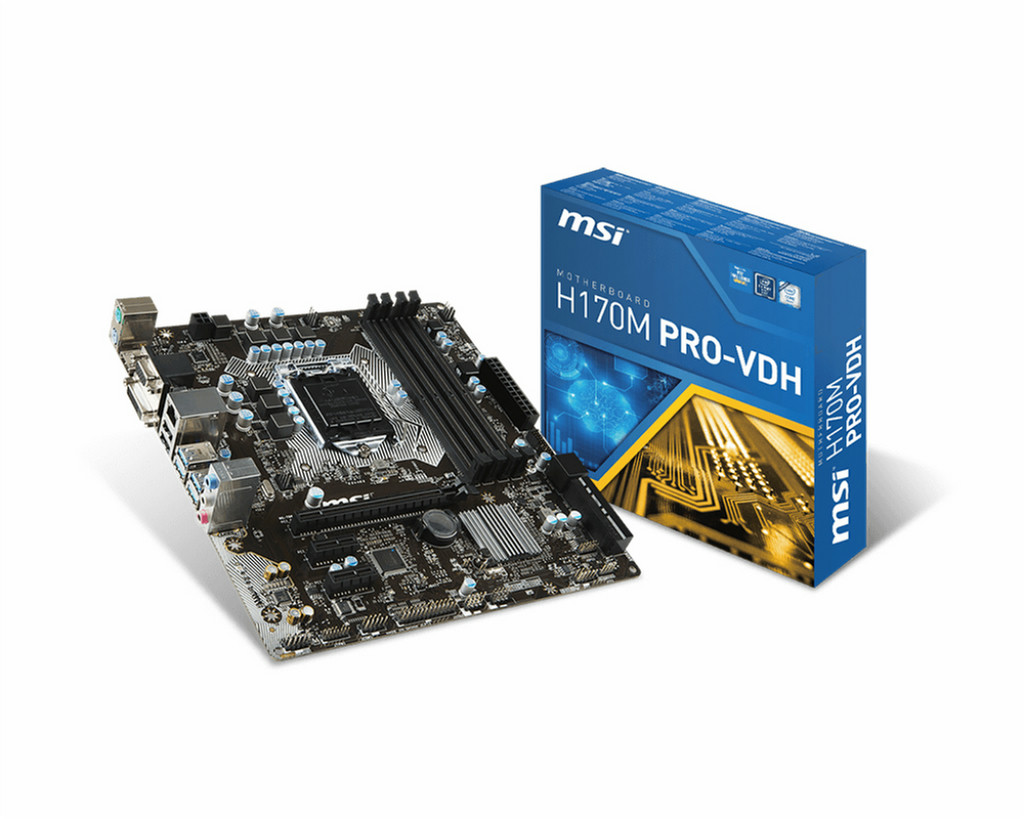

Intel Core i3/i5/i7; Pentium; Celeron, LGA1151, Intel H170, 4 x DDR4, 2133 MHz, Realtek ALC887, Realtek RTL8111H, 235 x 228mm, m-ATX
MAKING YOUR LIFE EASIER IS OUR BUSINESS
The PRO Series motherboards fit in any PC. Quality you can trust with top performance and clever business solutions are key aspects of these motherboards. Make your life easier and boost your business with the super stable, reliable and long-lasting PRO Series motherboards.
Unmatched memory performance and stability
With traditional memory design the memory signals are often distorted by electromagnetic signals from other components, making the system perform slower or become unstable. MSI introduces DDR4 Boost technology with optimized traces and fully isolated memory circuitry. This design ensures the memory signals stay pure for optimal performance and stability.
PUSH YOUR SSD HARDER WITH M.2
M.2 doesn’t need any power- or signal-cables and with a very small footprint M.2 is the storage connector of the future replacing traditional HDDs/SSDs.
SECURE AND RELIABLE UEFI BIOS SOLUTION
This next generation UEFI BIOS is completely rebuilt and features a plethora of system builders’ favorite options. From M-Flash for easy BIOS flashing to advanced data protection & system security, CLICK BIOS hands you the tools to fully protect and optimize the system.
Through smart design and optimizations for Windows 10, CLICK BIOS is faster than ever. By reducing the use of graphics in the UEFI shell, it boots faster, reacts faster and adds a smooth experience when changing settings. Smart categorizing of functions and settings make this the easiest BIOS you’ll ever see.
M-CLOUD
MSI M-Cloud is a convenient and secure way of saving personal files in the cloud. M-Cloud simplifies complicated settings with a user friendly interface and is easy to learn. Build and maintain your personal cloud with ease. M-Cloud can also turn your PC into an Access Point. You can easily share a wireless network or internet signal to other devices through just a few simple steps.
EASY DIAGNOSTIC
MSI EZ Debug LED is an easy troubleshooting tool using 3 LEDs to indicate CPU / Memory / VGA operation every time you boot up your system. Run into trouble? Use the LEDs to easily identify the source of your problem and get back into operation quickly.
ENHANCED CPU OVERVOLTAGE PROTECTION
Onboard overvoltage protection prevents overvoltage and short-circuit damage of the CPU and other components. A red LED near the 24 pin CPU power connector let you know that overvoltage protection is activated for easier troubleshooting.
VGA ARMOR: REINFORCED PCI EXPRESS SLOT
With the increased size and weight of modern high end graphics cards, traditional PCI Express slots often show signs of bending or even breaking. Meet VGA Armor, strengthened PCI Express slots using more solder points to make sure you never have to worry about breaking off any of the slots.
