内置输入/输出系统
| 通过内部接头的串行端口 |
Y |
| USB 2.0接口 |
2 |
| ATX电源接头 |
Y |
| TPM（可信任安全平台模组）接口 |
Y |
| USB 3.0（第 1代3.1）连接器 |
1 |
| SATA III连接器数量 |
2 |
| SATA II连接器数量 |
2 |
| CPU风扇接口 |
Y |
| 机箱风扇接头数量 |
1 |
| 前面板音频接头 |
Y |
| 串行端口接头连接器 |
1 |
性能
| 主板元件 |
Mini ITX |
| 主板芯片组系列 |
Intel |
| 可信任平台模组(全面生产管理) |
Y |
| 英特尔®图形技术处理器 |
Y |
| 音频系统 |
Realtek ALC887 |
| 组件应用 |
PC |
| 冷却方式 |
Passive |
内存参数
| 可支持内存时钟速度 |
1066, 1333, 1600 MHz |
| 支持的内存类型 |
DDR3-SDRAM |
| 内存通道支持 |
Dual |
| 内存插槽类型 |
DIMM |
| 最大内部存储 |
16 GB |
图像
| DirectX版本 |
11 |
| 最大图形显示内存 |
1760 MB |
| 图形适配器系列 |
Intel |
| 分立图形支持 |
Y |
其他功能
| 可支持处理器数量 |
1 |
| 处理器前端汇流总线 |
100 MHz |
背板输出端口
| DVI-D接口数量 |
1 |
| PS/2连接埠数量 |
1 |
| 耳机输出端口 |
1 |
| S/PDIF输出接口 |
Y |
| 麦克风/音频输入插孔 |
Y |
| 数字音频光学输出 |
1 |
| USB 3.0（第 1代3.1）Type-A 端口数量 |
2 |
| HDMI端口数量 |
1 |
| VGA（D-SUB）端口数量 |
1 |
扩展槽
| PCI Express X16（Gen 2.x）插槽 |
1 |
处理器
| 英特尔®酷睿™ i3/ i5 / i7 系列 |
i3-4xxx, i5-4xxx, i7-4xxx |
另外
| 主板晶片 |
Intel H81 |
| PCI Express插槽数量 |
1 |
| 双dvi（互应式数字视频） |
Y |
| 以太网连接器 |
Y |
| 以太网路(RJ-45)连接接口数量 |
1 |

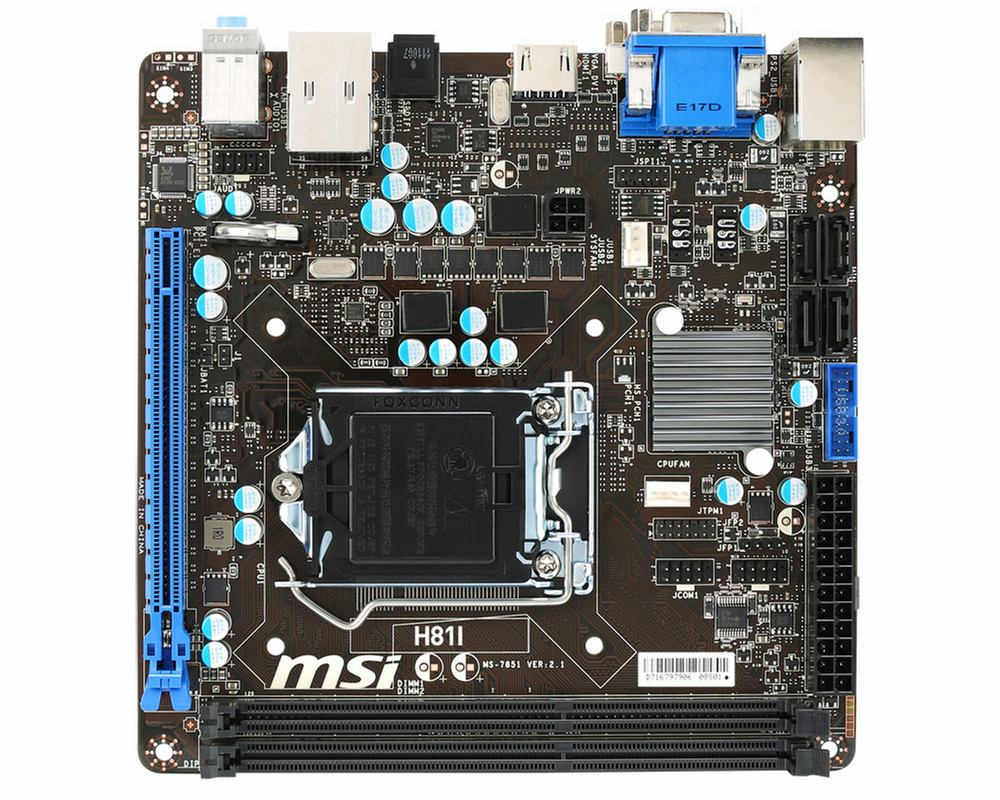

H81I, LGA1150, H81 Express, 2x DIMM, Realtek ALC887, Gigabit Ethernet, SATAIII/II, USB 3.0, D-Sub, DVI-D, HDMI, S/PDIF, Mini-ITX
- Supoorts 4th Gen Intel® Core™/Pentium®/Celeron® processors for LGA 1150 socket
- Supports DDR3-1600/ 1333/ 1066 MHz
- USB 3.0 + SATA 6Gb/s
- Military Class 4: Top Quality & Stability
- Military Class Essentials: Total Protection for Military Class Motherboards
- OC Genie 4: Overclock in 1 Second
- Click BIOS 4: Easily Fine-tune Your System
- 4K UHD Support: Ultra-high Definition Visual Experience
- 3 Digital Display Outputs: DisplayPort/HDMI/DVI Support
- Command Center: Control & Customize Your PC Settings
- Fast Boot: Quickly Boot Up & Enter OS in A Few Seconds
Military Class 4
MSI's new Military Class 4 components support you while you are questing, racing, battling and shooting your way to the top. MSI's Military Class 4 components deliver record-breaking stability when you need to keep cool in the heat of battle. The new standard in stability built on a proven technology of high quality components.
Military Class Essentials
The core of Military Class 4 is based on the essentials which increase your stability in the worst conditions. The humidity protection and high temperature protection ensure your system surviving each environment, no matter how harsh. The new structure of the PCB limits EMI radiation. On top of that all the connectors have ESD protection in order to prevent short circuit.
OC Genie 4
OC Genie 4 supercharges your speed experience! When used, OC Genie 4 accelerates your entire system and puts it into overdrive! Tuned by the professional overclockers, OC Genie 4 hands you record-breaking performance on a silver plate.
Click BIOS 4
The MSI Click BIOS 4 is the latest UEFI BIOS with optimizations for Windows 8. Not only reacting faster and running smoother, it also has better mouse support. This is all comes with many cool features, such as Hardware Monitor, Board Explorer, and OC Profile Preview.
Benefits:
- Optimizations for Latest Windows
- Hardware Monitor
- Board Explorer
- OC Profile Preview
4K UHD Support
Enjoy the awesome 4K UHD video playback now! MSI's 8 series motherboards that equip with HDMI port(s) supports the latest and the most innovative 4K UHD (2160p ultra-high definition) signal outputs to provide an unprecedented visual experience.
USB 3.0
Compared to the 480Mbps provided by traditional USB 2.0, the all-new USB 3.0's 5Gb/s offers 10 times the transfer bandwidth, so transferring a Blu-ray movie takes less than one minute.
Features
- 10X Faster Than USB 2.0
- Up to 5Gb/s Data Transfer Bandwidth
- Boost Transfer Rate Between Your PC and External Storage Devices
Intel® Smart Connect
- Automatically pull data from cloud services for always updated content
- Fast applications sync with cloud services, without the need for manual interaction
- Great power efficiency as system wakes to a low power state to download content
Command Center
Command Center is the next-gen multi-function software platform and allows easy visual adjustment of system settings, automatically tune fans or give complete freedom. It features an integrated unlimited RAM disk. With the Command Center mobile version, you can remote and monitor your PC wirelessly via your iPhone or Android phone.
