性能
| 主板元件 |
Micro ATX |
| 主板芯片组系列 |
Intel |
| 音频输出通道数量 |
7.1 channels |
| 音频系统 |
Realtek ALC887 |
| 组件应用 |
PC |
内存参数
| 可支持内存时钟速度 |
1066, 1333, 1600 MHz |
| 无错误检测和更正 |
Y |
| 无缓冲内存 |
Y |
| 支持的内存类型 |
DDR3-SDRAM |
| 内存通道支持 |
Dual |
| 内存插槽类型 |
DIMM |
| 內存插槽数量 |
2 |
| 最大内部存储 |
16 GB |
内置输入/输出系统
| USB 2.0接口 |
2 |
| ATX电源接头 |
Y |
| TPM（可信任安全平台模组）接口 |
Y |
| USB 3.0（第 1代3.1）连接器 |
1 |
| SATA III连接器数量 |
2 |
| SATA II连接器数量 |
2 |
| 并行接口 |
Y |
| 支持存储驱动器界面 |
Serial ATA II, Serial ATA III |
| CPU风扇接口 |
Y |
| 机箱防盗接口 |
Y |
| 机箱风扇接头数量 |
2 |
| EATX电源接头数量 |
1 |
| 前面板音频接头 |
Y |
| 串行端口接头连接器 |
1 |
图像
| DirectX版本 |
11 |
| 最大图形显示内存 |
1760 MB |
| 最大分辨率 |
2560 x 1600 pixels |
背板输出端口
| DVI-D接口数量 |
1 |
| PS/2连接埠数量 |
2 |
| USB2.0端口的数量 |
2 |
| 耳机输出端口 |
1 |
| 麦克风/音频输入插孔 |
Y |
| USB 3.0（第 1代3.1）Type-A 端口数量 |
4 |
| HDMI端口数量 |
1 |
| VGA（D-SUB）端口数量 |
1 |
扩展槽
| PCI 插槽 |
1 |
| PCI Express x1（Gen 2.x）插槽 |
2 |
| PCI Express X16（Gen 2.x）插槽 |
1 |
联网
| 局域网控制器 |
Realtek RTL8111G |
| 以太网接口类型 |
Gigabit Ethernet |
处理器
| 处理器插槽 |
LGA 1150 (Socket H3) |
| 兼容处理器 |
Celeron, Core i3, Core i5, Core i7, Pentium |
另外
| 主板晶片 |
Intel H81 |
| 以太网连接器 |
Y |
| 以太网路(RJ-45)连接接口数量 |
1 |

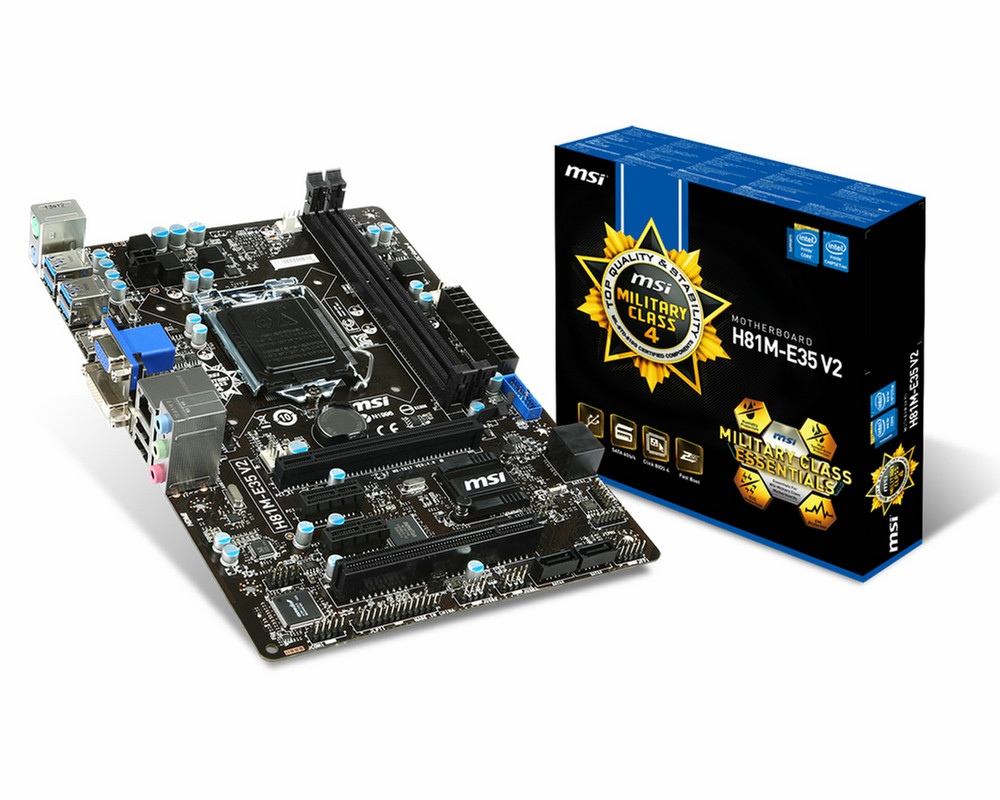

Intel LGA 1150, Intel H81 Express, 2 x DDR3 DIMMs 1066/1333/1600 MHz max. 16GB, SATAIII/SATAII, Realtek ALC887 8ch., Gigabit Ethernet, Micro-ATX
Military Class Essentials
The core of Military Class 4 is based on the essentials which increase your stability in the worst conditions. The humidity protection and high temperature protection ensure your system surviving each environment, no matter how harsh. The new structure of the PCB limits EMI radiation. On top of that all the connectors have ESD protection in order to prevent short circuit.
Military Class 4
MSI's new Military Class 4 components support you while you are questing, racing, battling and shooting your way to the top. MSI's Military Class 4 components deliver record-breaking stability when you need to keep cool in the heat of battle. The new standard in stability built on a proven technology of high quality components.
OC Genie 4
OC Genie 4 supercharges your speed experience! When used, OC Genie 4 accelerates your entire system and puts it into overdrive! Tuned by the professional overclockers, OC Genie 4 hands you record-breaking performance on a silver plate.
Click BIOS 4
The MSI Click BIOS 4 is the latest UEFI BIOS with optimizations for Windows 8. Not only reacting faster and running smoother, it also has better mouse support. This is all comes with many cool features, such as Hardware Monitor, Board Explorer, and OC Profile Preview.
Benefits:
- Optimizations for Latest Windows
- Hardware Monitor
- Board Explorer
- OC Profile Preview
Hardware Monitor
Hardware monitor allows you to take control of your system through Total Fan and check your primary system characteristics in an easy graphical interface.
Board explorer gives you detailed info about on-board components on mouse-over. Quickly identify connected ports and devices.
*Actual performance and photos vary by your system and model.
In the blink of an eye, you can see the differences between your current system settings and any of the eight profiles you can have stored.
4K UHD Support
Enjoy the awesome 4K UHD video playback now! MSI's 8 series motherboards that equip with HDMI port(s) supports the latest and the most innovative 4K UHD (2160p ultra-high definition) signal outputs to provide an unprecedented visual experience.
USB 3.0
Compared to the 480Mbps provided by traditional USB 2.0, the all-new USB 3.0's 5Gb/s offers 10 times the transfer bandwidth, so transferring a Blu-ray movie takes less than one minute.
Features
- 10X Faster Than USB 2.0
- Up to 5Gb/s Data Transfer Bandwidth
- Boost Transfer Rate Between Your PC and External Storage Devices
SATA 6Gb/s
SATA 6Gb/s provides double the bandwidth of traditional SATA 3Gb/s, and increases the data transfer rate between your motherboard and internal storage devices, such as 7200RPM HDDs, 10000RPM HDDs and SSDs. It's also the current trend for upcoming high-speed internal storage devices to break the existing bottleneck of a PC's performance.
Features
- 2X Faster Than SATA 3Gb/s
- Up to 6Gb/s Data Transfer Bandwidth
- Unleash True Performance of New HDDs/SSDs
Intel® Smart Connect
- Automatically pull data from cloud services for always updated content
- Fast applications sync with cloud services, without the need for manual interaction
- Great power efficiency as system wakes to a low power state to download content
Command Center
Command Center is the next-gen multi-function software platform and allows easy visual adjustment of system settings, automatically tune fans or give complete freedom. It features an integrated unlimited RAM disk. With the Command Center mobile version, you can remote and monitor your PC wirelessly via your iPhone or Android phone.
Benefits:
- System Settings Adjustment
- Fan Curve Tuning
- Unlimited RAMDisk
- Mobile Control
Fast Boot
No more waiting for entering O/S! MSI Fast Boot helps to make motherboards boot lightning fast. MSI also adds the GO2BIOS button with-in. Simply click it to reset your PC and then go straight to the system BIOS.
Live Update 5
MSI Live Update 5 is a powerful and useful application for updating the latest BIOS and Drivers, saving your time and lowering the risk of updating. End-users can install and run the Live Update 5 software on their computers with the companion CD or downloading the app from the MSI website.
Features
- Automatically Detect the BIOS/Driver/VGA/Utility Update
- Support Microsoft Windows XP/Vista/7 32/64bit
M-Flash
Compared to common motherboards which need extra BIOS chips, MSI's M-Flash has a double advantage which doesn't need extra components and secondly, all your BIOS data will be saved in the USB drive. The stored data does not only have backup and upgrade function, moreover, it can also be seen as a portable BIOS chip which is actually able to boot up your PC.
Features
- Backup/Restore Your BIOS to/from Any USB Flash Disk
- Avoid Unnecessary Repair Due to Accident Failures During The Upgrading Process
- Earn more BIOS Lifespan by Reducing Unnecessary Rewriting Process
