性能
| DirectX版本 |
12.0 |
| HDCP |
Y |
| Full HD |
Y |
| 集成电视调谐器 |
N |
| PhysX |
N |
| OpenGL版本 |
4.5 |
端口 & 界面
| 接口类型 |
PCI Express x16 3.0 |
| HDMI端口数量 |
2 |
| DisplayPort 数量 |
2 |
| DVI-D接口数量 |
1 |
内存参数
| 独立显卡适配器內存 |
8 GB |
| 图形适配器内存类型 |
GDDR5 |
| 数据宽度 |
256 bit |
| 内存时钟速度 |
6700 MHz |
处理器
| 图形处理器系列 |
AMD |
| 处理器频率 |
1206 MHz |
| 处理器提高时钟速度 |
1254 MHz |
| 视频卡最大显示 |
4 |
| CUDA |
N |
设计
| 格式要素 |
ATX |
| 冷却方式 |
Active |
| 插槽数量 |
2 |
能量控制
| 最低系统供电 |
450 W |
| 补充电源连接器 |
1x 8-pin |

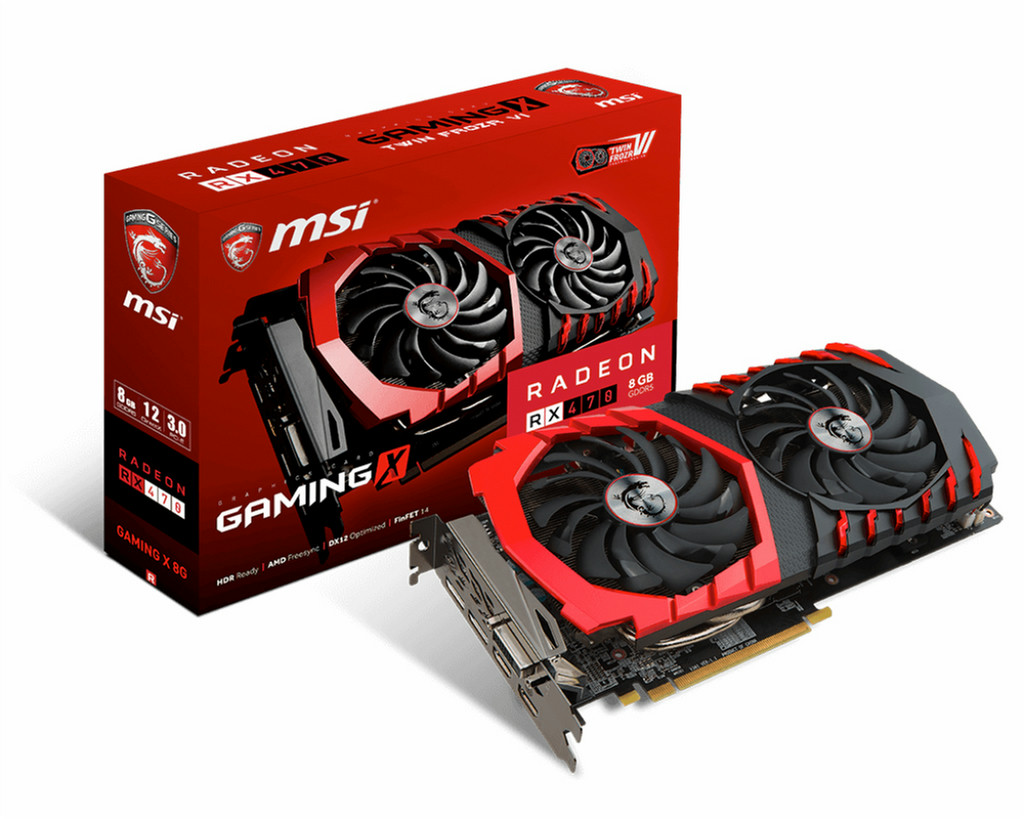

Radeon RX 470, PCI Express x16 3.0, 8192 MB, GDDR5, 256-bit, 276 x 140 x 37mm, 774g
<b>DEMAND MORE, DEMAND RADEON</b>
<b>Guiding the Future of Gaming</b>
The 4th generation GCN architecture is engineered for gamers who play anything from the latest MOBA’s to the most popular AAA titles. Asynchronous Shaders and an enhanced Geometry Engine power new levels of smooth gameplay performance.
<b>Immersive VR Experiences</b>
Experience the next level of immersion with the world of VR gaming and entertainment with Radeon RX graphics cards powered by the revolutionary Polaris architecture.
<b>AMD FreeSync™ Technology</b>
Puts an end to choppy gameplay and broken frames with fluid, artifact-free performance at virtually any framerate.
<b>HDR compatible</b>
Enhanced contrast and colors deliver a strikingly sharp, colorful, and vivid visual experience.
<b>TORX 2.0 FAN</b>
<b>Teamwork for greater strength</b>
Just like in games, the exclusive MSI TORX 2.0 Fan technology uses the power of teamwork to allow the TWIN FROZR VI to achieve new levels of cool.
TORX 2.0 Fan design generates 22% more air pressure for supremely silent performance in the heat of battle.
<b>Zero Frozr-Stay undetected</b>
First introduced in 2008 by MSI, ZeroFrozr technology has made its mark and is now the industry standard among graphics cards. It eliminates fan noise by stopping the fans in low-load situations. This means you can focus on gaming without the noise of spinning fans.
