性能
| NVIDIA® G-SYNC 技术配置 |
N |
| AMD FreeSync |
Y |
| DirectX版本 |
12.0 |
| OpenGL版本 |
4.5 |
| NVIDIA® GameWorks VR 平台 |
N |
| 最高着色模型版本 |
5.1 |
| PhysX |
N |
| 集成电视调谐器 |
N |
| Full HD |
Y |
| HDCP |
Y |
处理器
| 处理器频率 |
1196 MHz |
| 图形处理器系列 |
AMD |
| CUDA |
N |
| 流处理器 |
1024 |
| FireStream |
Y |
内存参数
| 图形适配器内存类型 |
GDDR5 |
| 数据宽度 |
128 bit |
| 内存时钟速度 |
7000 MHz |
| 独立显卡适配器內存 |
4 GB |
端口 & 界面
| DVI-D接口数量 |
1 |
| 接口类型 |
PCI Express x16 3.0 |
| DisplayPort 数量 |
1 |
| HDMI端口数量 |
1 |
设计
| 插槽数量 |
2 |
| 风扇数量 |
1 fan(s) |
| 冷却方式 |
Active |
另外
| 图形处理器 |
Radeon RX 560 |
| 双dvi（互应式数字视频） |
Y |

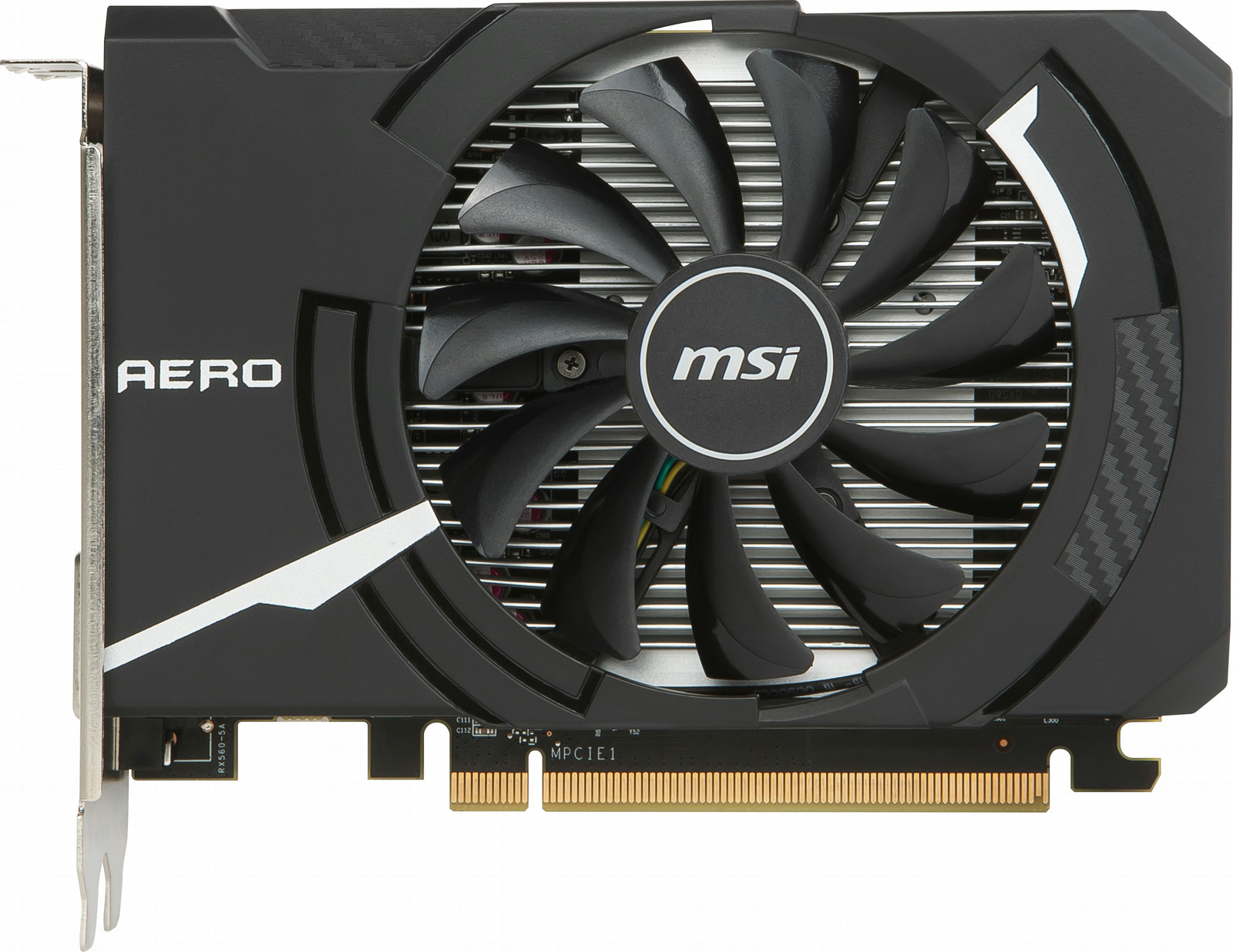

AMD Radeon RX560, PCI Express x16 3.0, 4GB GDDR5, 128 bits, 1 x DisplayPort, 1 x HDMI, 1 x DVI-D
DEMAND MORE, DEMAND RADEON
Guiding the Future of Gaming
The 4th generation GCN architecture is engineered for gamers who play anything from the latest MOBA’s to the most popular AAA titles. Asynchronous Shaders and an enhanced Geometry Engine power new levels of smooth gameplay performance.
AMD FreeSync™ Technology
Puts an end to choppy gameplay and broken frames with fluid, artifact-free performance at virtually any framerate.
HDR compatible
Enhanced contrast and colors deliver a strikingly sharp, colorful, and vivid visual experience.
SMALL PACKAGE, BIG PUNCH
The power of a full size graphics card in an incredibly small package. MSI AERO ITX graphics cards are perfect for small form factor systems and HTPC’s as they only take up a fraction of the space of a full size graphics card. This means they will fit into virtually any system and ensure a smooth gaming experience.
PERFECT IN ANY CASE
The saying “Good things come in small packages” is certainly true for AERO ITX cards. Thanks to its small form factor it will fit into virtually any case. Its compact size also means that its weight is dramatically less than that of a full size graphics card.
MILITARY CLASS 4 COMPONENTS
One of the deciding factors in performance is the quality of the components used. That is why MSI only uses MIL-STD-810G certified components for AERO ITX cards. These components have proven durable enough to withstand the torturous circumstances of extreme gaming and overclocking for extended usage.
THE FUTURE OF GAMING
The smoothest, fastest and most exciting gaming experience ever by eliminating screen tearing, display shutter and input lag.
Ultra-high resolution (UHD) delivers 4x the resolution of 1080p content, enabling much sharper and crisper images with delicate details during gaming.
AFTERBURNER
MSI Afterburner is the world’s most recognized and widely used graphics card overclocking utility which gives you full control of your graphics cards. It also provides an incredibly detailed overview of your hardware and comes with some additional features such as customizing fan profiles, benchmarking and video recording.
